Dayton 4YX97 Hydraulic Unit
  • ML B6, Spring Pin
    Up to $0.16 off
    49

    ML B6

    $0.45
    $0.45 $0.61
  • ML B5, Traverse
    50

    ML B5

    Call for Price
  • ML B7, Retaining Ring
    Up to $0.68 off
    51

    ML B7

    $1.64
    $1.64 $2.32
  • ML B102, Roll Pin
    Up to $0.26 off
    52

    ML B102

    $0.29
    $0.29 $0.55
  • ML B101, Blade Spring
    Up to $0.92 off
    53

    ML B101

    $3.55
    $3.55 $4.47
  • ML B104, Roll Pin
    Up to $0.17 off
    54

    ML B104

    $0.40
    $0.40 $0.57
  • ML B105, Roll Pin
    Up to $0.22 off
    55

    ML B105

    $0.45
    $0.45 $0.67
  • ML B106, Roll Pin
    Up to $0.62 off
    56

    ML B106

    $0.55
    $0.55 $1.17
  • ML B107, Control Lever
    Up to $2.87 off
    57

    ML B107

    $6.60
    $6.60 $9.47
  • ML B109, Handle Pin
    Up to $1.02 off
    58

    ML B109

    $2.75
    $2.75 $3.77
  • ML B110, Roll Pin
    Up to $0.12 off
    59

    ML B110

    $0.45
    $0.45 $0.57
  • ML B111, Roller
    60

    ML B111

    $18.65
    $18.65 $14.80
  • ML B112, Bushing
    Up to $0.32 off
    61

    ML B112

    $2.00
    $2.00 $2.32
  • ML B114, Handle Bushing
    Up to $1.73 off
    62

    ML B114

    $3.72
    $3.72 $5.45
  • ML B113A, Control Linkage Assembly
    Up to $10.15 off
    63

    ML B113A

    $25.49
    $25.49 $35.64
  • ML B1A, Handle Assembly, Complete
    Up to $10.67 off
    64

    ML B1A

    $69.33
    $69.33 $80.00

Using this diagram

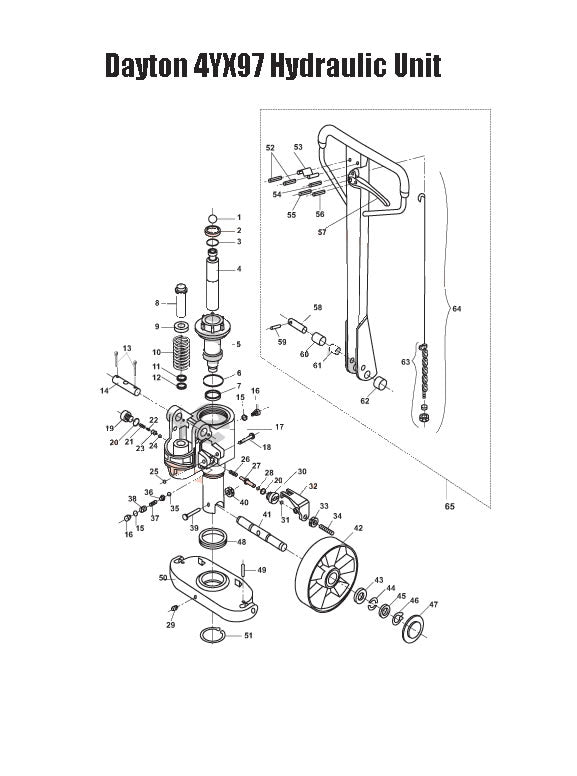

The exploded view above shows the hydraulic unit for the Dayton 4YX97. Each callout number corresponds to a component listed below it — find your part on the drawing, then match the number to the listing to get the current part number and price.

Ordering the right part

  • Individual components — seals, o-rings, pins and springs are listed separately
  • Seal kits — if more than one seal is weeping, a seal kit is usually cheaper than buying the parts individually
  • Complete units — where a pump body is scored or cracked, replacing the unit is often more economical than rebuilding it

Not sure it matches?

Check the number stamped on the hydraulic unit itself against the drawing. If it does not match, call 1-800-669-7554 — we can identify the unit from a photograph.
