Pallet Mule AA5000 & AA5500 Hydraulic Unit
  • PU AA-70, Roll Pin
    Up to $0.18 off
    2

    PU AA-70

    $0.37
    $0.37 $0.55
  • PU AA-69, Control Lever, Rod and Chain
    Up to $8.29 off
    3

    PU AA-69

    $42.97
    $42.97 $51.26
  • PU AA-44, Ball
    Up to $0.78 off
    4

    PU AA-44

    $5.08
    $5.08 $5.86
  • PU AA-73, Adjusting Nut
    Up to $0.18 off
    4

    PU AA-73

    $0.37
    $0.37 $0.55
  • PU AA-22, Bolt
    Up to $0.18 off
    5

    PU AA-22

    $0.37
    $0.37 $0.55
  • PU AA-24, Lock Washer
    Up to $0.19 off
    6

    PU AA-24

    $0.67
    $0.67 $0.86
  • PU AA-12, Roll Pin
    Up to $0.26 off
    9

    PU AA-12

    $0.29
    $0.29 $0.55
  • PU AA-10, Bushing
    Up to $1.11 off
    10

    PU AA-10

    $7.21
    $7.21 $8.32
  • PU AA-09, Roller
    Up to $3.17 off
    11

    PU AA-09

    $8.91
    $8.91 $12.08
  • PU AA-21, Pin
    Up to $3.02 off
    12

    PU AA-21

    $12.99
    $12.99 $16.01
  • PU AA-20, Roll Pin
    Up to $0.23 off
    13

    PU AA-20

    $0.60
    $0.60 $0.83
  • PU AA-41, O-Ring
    Up to $0.09 off
    15

    PU AA-41

    $0.40
    $0.40 $0.49
  • PU AA-15, Spring
    Up to $0.71 off
    16

    PU AA-15

    $1.48
    $1.48 $2.19
  • PU AA-16, Valve Cone
    Up to $2.77 off
    17

    PU AA-16

    $5.95
    $5.95 $8.72
  • PU AA-17, Valve Cone Housing
    Up to $5.71 off
    18

    PU AA-17

    $10.53
    $10.53 $16.24
  • PU AA-18, O-Ring
    Up to $1.27 off
    19

    PU AA-18

    $6.00
    $6.00 $7.27
  • PU AA-19, Ball
    Up to $0.22 off
    20

    PU AA-19

    $0.37
    $0.37 $0.59
  • PU AA-31, Spring
    Up to $1.73 off
    23

    PU AA-31

    $3.72
    $3.72 $5.45
  • PU AA-32, O-Ring
    Up to $1.20 off
    24

    PU AA-32

    $4.07
    $4.07 $5.27
  • PU AA-34, Plunger
    Up to $4.19 off
    25

    PU AA-34

    $8.91
    $8.91 $13.10
  • PU AA-35, Release Lever
    Up to $4.19 off
    26

    PU AA-35

    $8.91
    $8.91 $13.10
  • PU AA-27, Clip Pin
    Up to $0.32 off
    27

    PU AA-27

    $0.76
    $0.76 $1.08
  • PU AA-26, Pin
    Up to $1.73 off
    28

    PU AA-26

    $3.72
    $3.72 $5.45
  • PU AA-68-COMPLETE, Handle Assembly, Complete
    1

    PU AA-68-complete

    Call for Price
  • PU AA-43, U-Cup
    Up to $1.82 off
    30

    PU AA-43

    $12.55
    $12.55 $14.37
  • PU AA-40, O-Ring
    Up to $0.30 off
    31

    PU AA-40

    $0.55
    $0.55 $0.85
  • PU AA-45, Ram
    Up to $17.06 off
    33

    PU AA-45

    $36.40
    $36.40 $53.46
  • PU AA-37, Scraper
    Up to $2.80 off
    32

    PU AA-37

    $11.48
    $11.48 $14.28
  • PU AA-02.3, Piston
    35

    PU AA-02.3

    Call for Price
  • PU AA-03.3, Washer
    36

    PU AA-03.3

    Call for Price
  • PU AA-04, Spring
    Up to $10.29 off
    37

    PU AA-04

    $34.51
    $34.51 $44.80
  • PU AA-05.3, Scraper
    38

    PU AA-05.3

    Call for Price
  • PU AA-06.3, O-Ring
    39

    PU AA-06.3

    Call for Price
  • PU AA-07.3, U-Cup
    40

    PU AA-07.3

    Call for Price
  • PU AA-11, Pin
    8

    PU AA-11

    Call for Price
  • PU AA-14, Plug
    14

    PU AA-14

    Call for Price
  • PU AA-25, Filler Plug
    Up to $3.48 off
    41

    PU AA-25

    $7.43
    $7.43 $10.91

Using this diagram

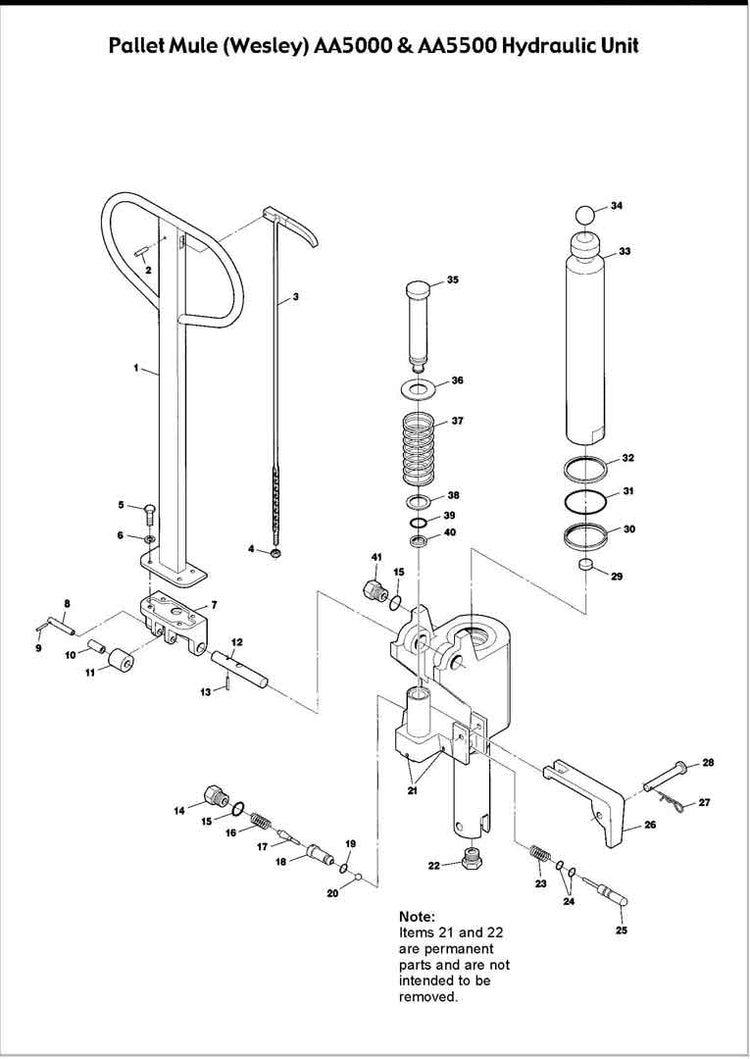

The exploded view above shows the assembly. Each callout number matches a component in the listing below it — find your part on the drawing, then match the number to get the current part number and price.

If more than one seal is weeping, a seal kit is usually cheaper than buying the parts individually. If the number stamped on your unit does not match the drawing, call 1-800-669-7554 — we can identify it from a photograph.
