Product Description

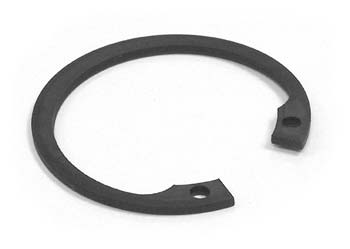

RETAINING RING
Frequently Asked Questions
Q: What is a retaining ring and what is its function on pallet jacks?
A: A retaining ring (also called a snap ring or circlip) is a spring steel ring that fits into a groove machined into a shaft or bore. On manual pallet jacks, retaining rings secure load wheel bearings, bushings, and other components to the load wheel axle. They prevent parts from sliding off the shaft during operation while allowing easy removal for maintenance without requiring welding or permanent fastening.
Q: Which manual pallet jack models use this retaining ring?
A: This retaining ring (SKU 001477100J) is compatible with manual pallet jacks from Crown, Toyota, Raymond, Yale, Hyster, Clark, and other major OEM manufacturers. The specific application depends on the wheel assembly design and axle diameter. Verify the part number 001477100J against your equipment documentation or cross-reference your current ring dimensions and groove diameter to ensure proper fit.
Q: How do I remove and install this retaining ring safely?
A: To remove: Use a flathead screwdriver or retaining ring removal tool to pry the ring out of its groove. Do not use excessive force. To install the new ring (001477100J): (1) Align the ring opening with the notch or cutout in the groove. (2) Using a retaining ring tool or screwdriver, press the ring into the groove with steady pressure until it seats fully. (3) The ring should sit flush in the groove with no part protruding. (4) Verify the ring is fully seated by attempting to slide it by hand; it should not move.
Q: Can this retaining ring be reused or must it be replaced every time?
A: Retaining rings are designed for multiple removal and installation cycles. However, if the ring has been bent, cracked, or heavily compressed during removal, it should be replaced (SKU 001477100J) to ensure it maintains proper clamping force. A damaged ring may not seat properly in the groove and could allow components to shift or separate during operation, creating a safety hazard.
Q: What material is this retaining ring made from and why is that important?
A: Retaining rings for material handling equipment are typically made from spring steel (such as C1075 or C1080 carbon steel) and heat-treated for strength and elasticity. This material allows the ring to maintain clamping force while flexing slightly during insertion and removal. The tensile strength is essential; a ring made from softer material will lose its ability to secure components and will require frequent replacement.
Q: What happens if this retaining ring fails or comes loose?
A: If the retaining ring fails or comes loose, the load wheel bearing or bushing assembly may slide along the axle shaft, causing uneven wheel alignment, excessive vibration, and rapid bearing wear. In severe cases, the wheel assembly can separate from the axle entirely, causing equipment failure and potential operator injury. If you observe any movement in the load wheel assembly or hear unusual noise, immediately check the retaining ring and replace it if necessary (SKU 001477100J).
