Raymond DC Contactor for 12VDC Lift Trucks
1-105-048
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

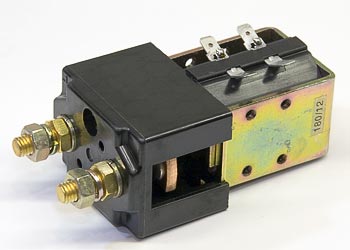

Raymond 1-105-048 DC contactor, designed for 12VDC lift truck electrical systems. OEM part for Raymond electric lift trucks. Single pole, normally open configuration. Direct panel mounting. Copper alloy contacts with silver overlay and glass-reinforced resin base. Compatible with Raymond lift truck models requiring a 12VDC power contactor.
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Part Number | 1-105-048 |
| Compatibility | Compatible with Raymond lift truck models requiring a 12VDC power contactor |
Electrical Specifications
| Coil Voltage | 12VDC |
| Control Circuit Voltage | 12VDC |
Additional Specifications
| Contactor Type | DC Power Contactor |
| Base Material | Glass-reinforced thermoset resin |
| Configuration | Single pole, normally open |
| Mounting Type | Direct panel mounting |
| Contact Material | Copper alloy contacts with silver overlay |
Frequently Asked Questions
Q: What materials are used in the construction of the 1-105-048?
A: The 1-105-048 features copper alloy contacts with a silver overlay for electrical conductivity and arc resistance. The base is made from glass-reinforced thermoset resin for structural stability and insulation.
Q: How do I know if the 1-105-048 is the right replacement part for my equipment?
A: Confirm that your lift truck operates on a 12vdc system and is part of the Raymond. Check for matching mounting type, coil voltage, contact configuration, and terminal arrangement to ensure proper fit.
Q: What are the common signs of a faulty 1-105-048 contactor?
A: Failure symptoms may include no power to the lift circuit, intermittent loss of drive power, audible chattering or buzzing when energized, or contacts that remain stuck in either open or closed position. Contact corrosion or pitting may also prevent full circuit closure.
Q: Can the 1-105-048 be used as a direct replacement for other contactors?
A: The 1-105-048 is an original equipment part for Raymond lift trucks and may not directly interchange with other brands. Verify mounting type, coil voltage, contact configuration, and terminal arrangement match your equipment.
