Steer Wheel for Lift-Rite L-50, LR55, LS100
10236-BS
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

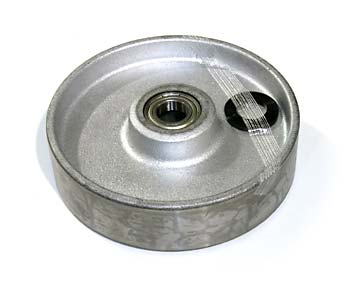

Steel steer wheel with ball bearing ID, optimized for Lift-Rite L-50 and LR55/LS100 manual pallet jack models. Wheel composed of hot-rolled SAE 1045 carbon steel, finished with zinc plating for corrosion resistance. Cross-references LF 10236-B-S-A, PL-10236BS-B, and CR 41275-3. Maximum axle load per wheel. Compatible with axle assemblies, mounted via snap ring and bearing retention. Supersedes previous steer wheel part numbers for Lift-Rite manual pallet jack
Specifications
Part Numbers
| Part Number | 10236-BS |
| Manufacturer Part Number | LF PL-10236BS-B |
| Cross References | LF 10236-B-S-A, PL-10236BS-B, CR 41275-3 |
| Compatible Models | Lift-Rite L-50 (Serial #62500 and higher), LF 0655, LR55, LR2055, LS100 |
Specifications
| Material | Hot-rolled SAE 1045 carbon steel |
| Finish | Zinc plating for corrosion resistance |
| Bearing Bore ID | ball bearing |
| Maximum Axle Load per Wheel | |
| Axle Compatibility | axle assemblies |
| Mounting Method | Snap ring and bearing retention |
| Service Factor | 1.00 (continuous manual operation) |
Frequently Asked Questions
Q: What are the key specifications for the 10236-BS steel steer wheel?
A: The 10236-BS is constructed from hot-rolled SAE 1045 carbon steel with zinc plating for corrosion resistance. It features a ball bearing bore ID and is rated for a maximum axle load of per wheel. The wheel is designed for use with axle assemblies.
Q: Which Lift-Rite manual pallet jack models are compatible with the 10236-BS?
A: The 10236-BS is compatible with Lift-Rite L-50 (serial number 62500 and higher), LF 0655, LR55, LR2055, and LS100 manual pallet jack models. It supersedes previous steer wheel part numbers for these platforms. Verify the serial number range on your equipment before ordering.
Q: What cross-reference part numbers apply to this wheel?
A: The 10236-BS cross-references to manufacturer part number LF PL-10236BS-B, part number PL-10236BS-B, and Crown part number CR 41275-3. These part numbers can be used interchangeably for inventory verification and ordering purposes across different supplier systems.
Q: How does zinc plating improve durability?
A: Zinc plating provides corrosion resistance suitable for wet warehouse environments and outdoor use. The coating prevents surface rust and extends equipment life compared to bare carbon steel. In high-humidity or salt-air environments, periodic inspection is recommended to monitor coating integrity.
Q: What does the 1.00 service factor indicate?
A: The 1.00 service factor indicates this wheel is designed for continuous manual pallet jack operation without derating. The 3000 lbs per-wheel load rating applies directly to standard warehouse duty cycles. Do not exceed the rated load or operate in shock-load conditions beyond manual handling specifications.
Q: How should this wheel be stored when not in use?
A: Store the 10236-BS wheel in a dry environment to preserve the zinc plating finish. Avoid prolonged exposure to moisture, salt, or corrosive chemicals. If stored outdoors, cover with a protective tarp to minimize environmental exposure.
Q: Why is SAE 1045 carbon steel preferred for steer wheels?
A: SAE 1045 carbon steel provides the hardness and load-bearing capacity required for warehouse equipment. This material grade resists deflection under heavy loads and offers superior durability on hard flooring compared to lower-grade alternatives. The zinc plating adds corrosion protection while maintaining the structural integrity of the base material.
Q: What makes this wheel a direct replacement for earlier Lift-Rite models?
A: The 10236-BS is manufactured to factory specifications with matching bearing bore ID, load rating, and mounting configuration. It provides original equipment-compatible performance and fits existing Lift-Rite pallet jack axle assemblies without modifications.
