Product Description

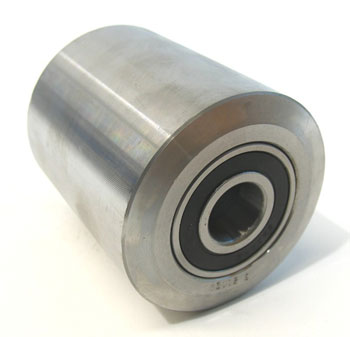

The 120E35S is a steel wheel with integral sealed ball bearings engineered for manual pallet jack applications. Featuring a heat-treated carbon steel core, crowned tread profile, and ISO 6204-series interchangeable 6204-2RS bearings, this part is suitable for load or steer wheel locations on most manual pallet jacks. Wheel dimensions are 2-15/16 inches diameter by 3-9/16 inches hub length, with a 20 mm precision bore. Protective machining and anti-corrosive finish ensure durability under typical
Specifications
Material & Construction
| Core Material | Heat-treated carbon steel |
| Tread Profile | Crowned |
| Bearing Type | Integral sealed ball bearings, ISO 6204-2RS |
| Surface Finish | Machined surface with anti-corrosive protective coating |
Part Numbers
| Part Number | 120E35S |
| Manufacturer Part Number | 120E35S |
Applications
| Application | Manual pallet jack load wheel and steer wheel |
| Equipment Type | Manual pallet jacks and hand pallet trucks |
Frequently Asked Questions
Q: What is the 120E35S steel wheel assembly?
A: The 120E35S is a steel wheel featuring a heat-treated carbon steel core with integral sealed ball bearings. The crowned tread profile distributes load evenly. This wheel is engineered for both load and steer positions on manual pallet jacks.
Q: What bearing type does the 120E35S use?
A: The 120E35S incorporates ISO 6204-series interchangeable 6204-2RS sealed ball bearings. The 2RS designation means double rubber seals protect the bearing raceway and rolling elements from contamination and moisture. This bearing type is standard across many manual pallet jack manufacturers.
Q: Can the 120E35S be used on load wheels and steer wheels?
A: Yes, the 120E35S is suitable for both load wheel and steer wheel locations on manual pallet jacks. The steel construction and crowned tread profile perform well in either position.
Q: What is the finish and corrosion protection on the 120E35S?
A: The 120E35S features a machined surface with anti-corrosive protective coating. This finish resists rust and corrosion in typical warehouse environments and provides durability under normal material handling conditions. The protective coating extends wheel lifespan.
Q: How long does the 120E35S typically last?
A: With regular use in standard warehouse conditions, the 120E35S typically performs for 5 to 8 years or more. The sealed bearings are the primary wear component. Service life depends on load frequency and use patterns. Replace if bearing resistance increases or grinding sounds occur.
Q: How should the 120E35S be stored?
A: Store the 120E35S in a dry environment away from excessive moisture and temperature extremes. Keep in original packaging if possible to protect the bearing seals. Store indoors in climate-controlled conditions to preserve the anti-corrosive coating and bearing integrity.
