Product Description

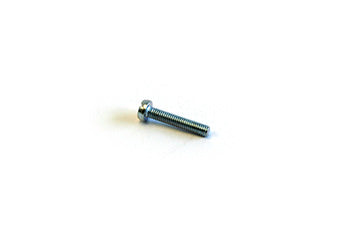

SCREW
Specifications
Product Overview
| Part Number | 13GM00316 |
| Product Type | Machine Screw |
Physical Specifications
| Material | Steel |
| Finish Options | Zinc-plated, Stainless Steel |
| Head Type | Pan Head or Flat Head Drive (metric M5/M6) |
| Thread Size | Metric M5 or M6 (confirm per equipment documentation) |
| Corrosion Resistance | Zinc-plated: standard indoor warehouse protection; Stainless: cold storage and high-moisture environments |
Compatibility
| Applications | Control modules, wiring harnesses, motor mounting brackets, battery compartments, load wheel assemblies |
| Compatible Equipment | Electric pallet jacks, electric forklifts, reach trucks from Crown, Toyota, Yale, Hyster, Raymond |
Frequently Asked Questions
Q: What is the 13GM00316 screw used for?
A: The 13GM00316 is a machine screw used in electric lift truck assemblies, typically for fastening control modules, wiring harnesses, or motor mounting brackets. It is a common fastener across Crown, Toyota, Hyster, and Raymond electric pallet jacks.
Q: What are the specifications of the 13GM00316?
A: The 13GM00316 is a steel machine screw with a zinc-plated or stainless finish. It is typically metric M5 or M6 with a pan head or flat head drive. Thread pitch and length vary by application; confirm your equipment documentation before ordering.
Q: Which electric pallet jack models use the 13GM00316?
A: This screw is compatible with electric pallet jacks from Crown, Toyota, Raymond, Yale, and Hyster. It is found in motor control systems, battery compartments, and load wheel assemblies. Cross-reference your trucks model year and control system.
Q: Can I substitute the 13GM00316 with a different screw?
A: Do not substitute without confirming size, thread pitch, head type, and material match your equipment. Using an incorrect screw can cause loose electrical connections, vibration damage, or component misalignment. Always use the specified part number.
Q: How often does this screw need replacement?
A: The 13GM00316 rarely needs replacement unless it is corroded, stripped, or lost. Inspect quarterly in high-vibration areas like motor mounts. Loose screws indicate a missed torque spec; re-torque and use a lockwasher to prevent future loosening.
Q: Is the 13GM00316 corrosion resistant?
A: The zinc-plated version offers standard indoor warehouse protection. For cold storage, request stainless steel variants. High-moisture environments require quarterly inspection for rust, particularly at screw heads and threads.
