Bearing Assembly for Manual Pallet Jacks
206S
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description

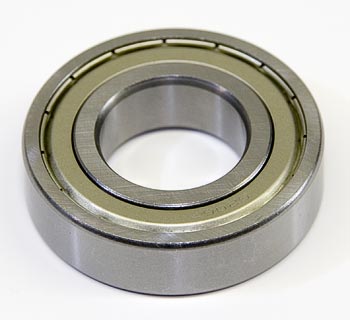

The 206S BEARING assembly (SINGLE SHIELD) by Liftsplus.com is a single shielded deep groove ball bearing, designed for manual pallet jack applications. Featuring a 30 mm bore, 62 mm outside diameter, and 16 mm width, this bearing uses SAE 52100 chrome steel construction and achieves a dynamic load rating of 20,300 N. The 206S cross-references to MRC 206S, SKF MRC 206S, and equivalents 6206Z, 6206S, and 206SFF.
Specifications
Bearing Specifications
| Bearing Type | Single Shielded Deep Groove Ball Bearing |
| Bore Size | 30 mm |
| Outside Diameter | 62 mm |
| Width | 16 mm |
| Dynamic Load Rating | 20,300 N |
Material
| Ball Material | SAE 52100 chrome steel |
| Outer Ring Material | SAE 52100 chrome steel, precision ground |
| Cage Material | Pressed steel |
| Raceway Finish | Super-finished to ABEC 1 tolerance |
Part Numbers
| Manufacturer Part Number | 206S |
| Cross-Reference Part Numbers | MRC 206S, SKF MRC 206S |
| Equivalent Part Numbers | 6206Z, 6206S, 206SFF |
| Replaces / Supersedes | Replaces 206SFF, supersedes 6206S |
Applications
| Primary Application | Manual pallet jack load wheel assemblies, steering assemblies |
| Compatible Equipment Brands | Crown, Yale, Raymond, Hyster |
Frequently Asked Questions
Q: What are the dimensions of the 206S bearing assembly?
A: The 206S features a 30 mm bore, 62 mm outside diameter, and 16 mm width. These dimensions make it compatible with standard manual pallet jack load wheel and steering assemblies across multiple OEM designs.
Q: What is the dynamic load rating for the 206S?
A: The 206S bearing achieves a dynamic load rating of 20,300 N, suitable for the repeated load cycles and weight handling demands of manual pallet jack applications in standard warehouse environments.
Q: What material is the 206S bearing made from?
A: The 206S uses SAE 52100 chrome steel for both the ball material and outer ring material, which is precision ground to bearing specifications. This material provides the hardness and durability required for industrial duty cycles.
Q: What are the cross-reference and equivalent part numbers for the 206S?
A: The 206S cross-references to MRC 206S and SKF MRC 206S. Equivalent part numbers include 6206Z, 6206S, and 206SFF. Verify your equipment documentation to confirm which reference applies to your specific pallet jack model.
Q: Which manual pallet jack models use the 206S bearing?
A: The 206S is designed for manual pallet jacks from Crown, Yale, Raymond, Hyster, and equivalent OEM manufacturers. This bearing size is a standard fit across many manual jack models. Confirm your equipment specifications before ordering.
Q: How can I tell if my 206S bearing needs replacement?
A: Replace the 206S bearing if you observe rough rotation, grinding noise, or excessive play in the load wheel or steering assembly. These symptoms indicate bearing wear or internal damage that compromises safe equipment operation.
