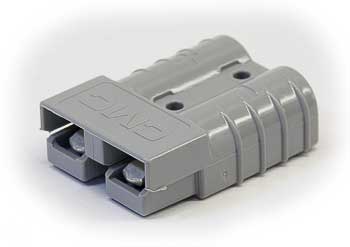

Connector SB50 #6 Gray
220052024
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description
CONNECTOR (SB50 #6 GRAY)
Specifications
Product Overview
| Part Number | 220052024 |
Physical Specifications
| Connector Type | Anderson PowerPole SB50 |
| Cable Gauge Rating | #6 AWG |
| Housing Color | Gray |
| Contact Material | Copper |
| Housing Material | Nylon |
| Current Rating | 50-80 amps |
| Voltage Rating | 600V DC typical |
Compatibility
| Applications | Battery circuits, control circuits, power distribution, solenoid circuits, accessory power |
Frequently Asked Questions
Q: What is the 220052024 connector used for?
A: The 220052024 is an SB50 #6 gray connector designed for mid-range electrical connections in electric lift trucks. It is used in control circuits, solenoid circuits, and accessory power distribution.
Q: What are the cable gauge specifications for the 220052024?
A: The 220052024 is an SB50 connector rated for #6 gauge cable (6 AWG), which handles moderate amperage in transmission control and circuit protection applications. The gray housing is standard for this connector type.
Q: What is the maximum current rating for the 220052024 connector?
A: SB50 connectors with #6 gauge capacity are rated for moderate amperage (typically 50 to 80 amps depending on the specific application and circuit design). Refer to your lift truck documentation for exact amperage requirements.
Q: How does the 220052024 differ from the 2200520-28 connector?
A: The 220052024 (SB50 #6) is designed for moderate amperage circuits, while the 2200520-28 (SB175 1/0) is for high-amperage main battery connections. Use the correct connector type for your specific circuit to ensure safe operation.
Q: Is the 220052024 compatible with standard Anderson PowerPole SB50 connectors?
A: The 220052024 follows SB50 Anderson PowerPole standards for #6 gauge connections. Confirm compatibility with your lift truck specifications before ordering.
