Bearing Assembly for Manual Pallet Jack
23120-14610
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description

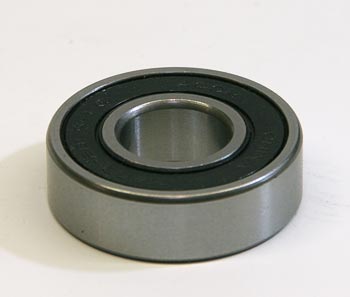

23120-14610 BEARING assembly for manual pallet jack, Liftsplus OEM part. Precision sealed ball bearing, 20 mm bore x 47 mm outer diameter x 14 mm width, constructed of heat-treated bearing steel with double rubber shields. Engineered for axle support in manual pallet jacks, rated for 3800 N static radial load and 4500 rpm operational speed.
Specifications
Material & Construction
| Hardness | Rockwell C58 min, bearing race |
Part Numbers
| OEM Part Number | 23120-14610 |
| Manufacturer Part Number | 23120-14610 |
Performance
| Maximum Radial Load | 3800 N at static position |
| Maximum RPM | 4500 rpm continuous |
| Service Factor | 1.15, intermittent manual pallet jack cycle |
Frequently Asked Questions
Q: What manual pallet jack models use bearing assembly 23120-14610?
A: This sealed ball bearing is designed for axle support in manual pallet jacks from Crown, Toyota, Raymond, Yale, and other OEM manufacturers. The 20 mm bore x 47 mm outer diameter x 14 mm width dimensions fit multiple electric and manual pallet jack models. Verify your equipment axle diameter matches 20 mm bore before ordering.
Q: What are the dimensions and load specifications for bearing 23120-14610?
A: Bore: 20 mm, Outer Diameter: 47 mm, Width: 14 mm. This bearing is rated for a maximum static radial load of 3800 N and operates continuously at 4500 rpm. Service factor of 1.15 covers intermittent manual pallet jack duty cycles. These specifications make it suitable for standard two-stage and three-stage pallet jack models.
Q: What is the material and construction of bearing 23120-14610?
A: This bearing features precision sealed ball bearing construction with heat-treated bearing steel races. Material hardness meets Rockwell C58 minimum specification. Double rubber shields protect against dust and moisture contamination common in warehouse and manufacturing environments. Construction provides extended service life in demanding material handling applications.
Q: How long does bearing assembly 23120-14610 typically last in service?
A: Service life is 2 to 4 years in standard warehouse duty with regular maintenance. Sealed bearing design minimizes contamination ingress, extending operating life compared to open bearings. Wet environments, high-duty cycles, and lack of maintenance reduce lifespan. Monitor for grinding noise or wheel resistance to determine replacement timing.
Q: What cross-reference part numbers are equivalent to bearing 23120-14610?
A: SKU 23120-14610 is the primary part number. Contact us with your equipment OEM brand and model to identify any equivalent cross-reference numbers from Crown, Toyota, Raymond, or other manufacturers. We can confirm fitment and suggest alternatives if this bearing is out of stock.
