Product Description

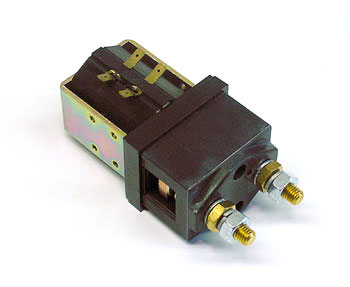

CONTACTOR (24 VOLT)
Specifications
Product Overview
| Part Number | 2690609 |
| Type | Electromagnetic Contactor |
Physical Specifications
| Coil Voltage | 24 Volt DC |
| Standard Use | Control circuit switching for motor direction and lift functions |
| Contact Configuration | Multi-pole configuration for propulsion and lift circuits |
| Duty Cycle | Suitable for high-cycle warehouse and distribution operations |
Compatibility
| Application | Electric lift truck direction and lift control |
| Compatible Makes | Crown, Toyota, Raymond, Yale, Jungheinrich, Hyster |
Frequently Asked Questions
Q: What voltage and amperage rating does the 2690609 contactor have?
A: The 2690609 is a 24-volt DC contactor rated for electric lift truck applications. Verify the coil voltage (24VDC) and contact amperage rating against your trucks electrical schematic before ordering to ensure compatibility with your control circuit.
Q: Which electric lift truck brands use the 2690609 contactor?
A: This contactor is compatible with Crown, Toyota, Raymond, and Yale electric pallet jacks and walkie stackers that operate on 24-volt DC systems. Cross-reference your equipments model and serial number to confirm fitment, as different model years may use different contact configurations.
Q: What are common failure symptoms indicating a contactor replacement is needed?
A: Failed contactors typically show symptoms like the truck refusing to move in one or both directions, intermittent loss of power, audible clicking in the control panel without motor engagement, or welded contacts preventing motor shutdown. If the truck loses propulsion or the lift function, the contactor is a primary diagnostic point.
Q: How long does a contactor typically last in service?
A: Contactor lifespan depends on duty cycle and electrical load. Heavy-use trucks see contactor replacement every 2 to 5 years. Light-duty equipment may run 5 to 7 years. Frequent direction reversals and high amperage draws accelerate wear on the contact surfaces.
Q: Is the 2690609 equivalent to other contactor part numbers?
A: The 2690609 may have equivalents across lift truck OEMs, but cross-reference by coil voltage, contact rating, and physical dimensions. Contact specifications to verify direct substitution before installation, as some OEM part numbers appear similar but have different electrical ratings.
