Product Description

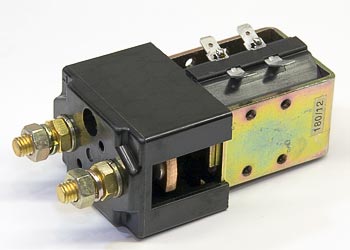

12VDC contactor suitable for electric lift truck main circuit applications. Features single-pole, normally open configuration, 150A continuous rating, and silver alloy contacts. Mounts with two-hole base, 5/16"-24 UNF studs
Specifications
Electrical
| Coil Voltage | 12VDC nominal |
| Pickup Voltage | 9.6VDC maximum (reference, 80% nominal) |
| Dropout Voltage | 1.2VDC minimum (reference, 10% nominal) |
Part Numbers
| OEM Part Number | LP375-1030 (Albright) |
Frequently Asked Questions
Q: What voltage and current rating does the 375-1030-B have?
A: The 375-1030-B is rated for 12VDC nominal coil voltage with a continuous rating of 150A. It features a single-pole normally open configuration with a pickup voltage of 9.6VDC maximum and dropout voltage of 1.2VDC minimum.
Q: What is the contact material and mounting configuration?
A: The 375-1030-B uses silver alloy contacts and mounts with a two-hole base using 5/16 inch-24 UNF studs. This configuration is standard for main circuit contactor installation on electric lift trucks.
Q: What is the relationship between 375-1030 and 375-1030-B?
A: The 375-1030-B is replaced by the newer 375-1030, which features industrial-grade thermoplastic housing and silver-cadmium oxide contacts. The 375-1030 provides improved performance and reliability for modern electric material handling equipment.
Q: What electric lift trucks use the 375-1030-B?
A: The 375-1030-B is a main circuit contactor for electric lift trucks manufactured by Crown, Toyota, Raymond, Yale, Hyster, and other OEM brands. Confirm your equipment model and serial range before ordering.
Q: What application is the 375-1030-B designed for?
A: The 375-1030-B is suitable for electric lift truck main circuit applications. It is a single-pole normally open contactor with 150A continuous duty rating, making it appropriate for control of primary power circuits in material handling equipment.
