Product Description

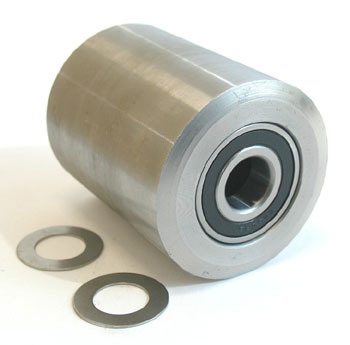

The 44506-3 is a durable steel load wheel assembly designed for Crown PTH50 manual pallet jacks. This direct replacement features factory-installed sealed ball bearings that provide smooth, reliable operation and extended service life. The sealed bearing design protects against dirt and moisture contamination, making it ideal for both warehouse and outdoor environments. Built to match original equipment specifications, the 44506-3 delivers dependable performance for heavy-duty material handling applications.
Specifications
Material & Construction
| Wheel Core Material | Steel construction |
Mechanical Specifications
| Bearing Designation | 6204-2RS deep groove ball bearing |
| Wheel Diameter | 3.0 inch |
| Tread Width | 3.875 inch |
| Bore Size | 25mm |
| Inner Diameter | 20mm |
Part Numbers & Compatibility
| Primary Part Number | 44506-3 |
| Cross-Reference Part Numbers | 44506-001, 44506-003 |
| Factory-Equivalent Part Number | Crown 44506-001 |
| Equipment Compatibility | Crown PTH50 manual pallet jack |
| Serial Number Range | Serial 7-000000 through 7-512501 |
Frequently Asked Questions
Q: What equipment does the 44506-3 steel load wheel fit?
A: The 44506-3 is designed for Crown PTH50 manual pallet jacks with serial numbers ranging from 7-000000 through 7-512501. It fits specific frame configurations within this serial range.
Q: What are the dimensions of the 44506-3 load wheel assembly?
A: The 44506-3 features a 3.0 inch diameter wheel with a 3.875 inch tread width and a 25mm precision bore. It is equipped with factory-installed 6204-2RS sealed ball bearings with a 20mm inner diameter.
Q: What material is the 44506-3 constructed from?
A: The 44506-3 has a steel core construction with sealed ball bearings. This combination provides robust durability and load capacity for heavy-duty manual pallet jack applications.
Q: What are the equivalent part numbers for the 44506-3?
A: The 44506-3 replaces Crown OEM part 44506-001 and is equivalent to 44506-003. Verify your specific serial number range before ordering to ensure compatibility.
