Product Description

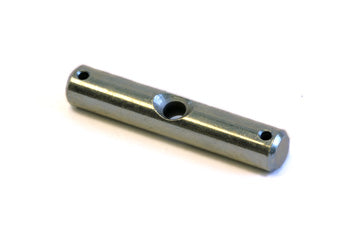

Handle pivot pin
Specifications
Physical Specifications
| Material | Hardened Steel |
| Finish | Zinc-Plated |
| Load Bearing | Yes - Structural Pin |
| Environmental Rating | Indoor/Outdoor Warehouse Duty |
| Function | Allows handle articulation and steering control |
| Compatibility | Manual and Electric Pallet Jacks |
| Inspection Criteria | Replace if handle shows play, wobbling, or binding resistance |
Compatibility
| Application | Handle Pivot - Pallet Jacks and Walkie Trucks |
Frequently Asked Questions
Q: What is the 46G264 handle pivot pin used for?
A: The 46G264 handle pivot pin is a load-bearing pin that connects the tiller handle to the frame on pallet jacks. It allows the handle to articulate and steer the vehicle while maintaining structural integrity under load and repeated pivoting.
Q: What specifications does the 46G264 handle pivot pin have?
A: The 46G264 pivot pin is precision-manufactured to fit the handle bracket bore and frame eyelet. Verify pin diameter, length, and shoulder dimensions match your equipment. Incorrect pin size will result in loose handle articulation or binding.
Q: Which equipment models use the 46G264 handle pivot pin?
A: The 46G264 is compatible with Crown, Toyota, Raymond, and Yale manual and electric pallet jacks. Confirm your equipment model and serial range before ordering to ensure correct fitment.
Q: What should I watch for when the handle pivot pin needs replacement?
A: Replace the pivot pin if the handle feels loose or wobbly, does not articulate smoothly, or if you notice visible play between the handle and frame. A worn pivot pin compromises steering control and should be replaced promptly.
Q: What material is the 46G264 pivot pin made from?
A: The 46G264 is manufactured from hardened steel with a zinc-plated or chrome finish. This provides corrosion resistance and durability through thousands of handle articulation cycles in warehouse and dock environments.
