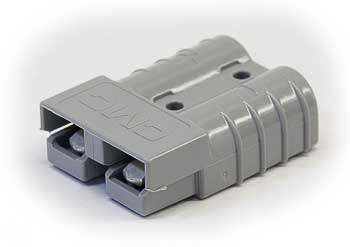

Connector SB50 #6 Gray
49010
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description
CONNECTOR (SB50 #6 GRAY)
Specifications
Physical Specifications
| Connector Type | Anderson SB50 |
| Gauge Rating | #6 |
| Color | Gray |
| Amperage Rating | 50 amps per contact |
| Voltage Range | 24V to 48V DC |
| Contact Material | Copper alloy with tin plating |
| Temperature Range | -40°F to 158°F (-40°C to 70°C) |
| Connect-Disconnect Cycles | Thousands of cycles |
Compatibility
| Compatible Equipment | Electric forklifts, reach trucks, electric pallet jacks, order pickers |
Frequently Asked Questions
Q: What is SKU 49010 and what does it connect?
A: SKU 49010 is an SB50 #6 gray connector used in electric lift truck and pallet jack wiring harnesses. This Anderson SB50 connector mates with corresponding male connectors on battery, charger, and motor circuit assemblies. The #6 gauge specification supports high-current applications typical of 24V, 36V, and 48V lift truck systems.
Q: What are the specifications and amperage rating for 49010?
A: 49010 is an SB50 #6 gray connector rated for approximately 50 amps per contact in standard operating conditions. The #6 designation refers to the gauge size of the terminals. This connector is designed for 24V to 48V DC systems common in electric material handling equipment from Crown, Toyota, Raymond, Yale, and Hyster.
Q: Is 49010 compatible with other connector types or brands?
A: SKU 49010 is specifically an Anderson SB50 connector and mates only with other Anderson SB50 connectors of the same gauge and pin configuration. It is not cross-compatible with Deutsch, Molex, or other proprietary connector systems. Verify your equipment documentation to confirm the correct connector type before ordering.
Q: What causes connector corrosion or failure, and how is it prevented?
A: Corrosion occurs when moisture and road salt penetrate connector contacts over time, particularly in outdoor or wash-down environments. Prevent failure by ensuring connectors are fully seated and locked, using dielectric grease on contact surfaces, and storing equipment in dry conditions when not in use. Replace corroded or pitted contacts immediately to avoid voltage drop and equipment malfunction.
Q: What is the typical service life of 49010 connectors?
A: Anderson SB50 connectors like 49010 are rated for thousands of connect-disconnect cycles under normal conditions. With proper maintenance and storage, they typically last 5 to 10 years or longer. However, frequent disconnection cycles, exposure to moisture, or contamination can reduce lifespan to 2 to 3 years. Replace at first sign of pitting, corrosion, or intermittent connection loss.
