Product Description

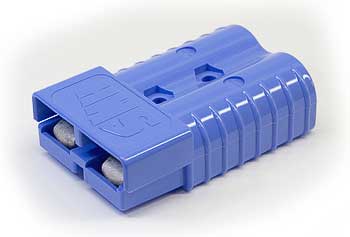

CONNECTOR (SB350 2/0 BLUE)
Specifications
Product Overview
| Product Name | SB350 2/0 Blue Battery Connector |
| Part Number | 49220 |
| Cross-Reference | Anderson Power Products 6325G8 |
Physical Specifications
| Connector Type | Genderless, Keyed |
| Current Rating | 350A Continuous Duty |
| Voltage Rating | Up to 600VDC |
| Cable Size | 2/0 AWG to 350 MCM |
| Contact Type | Flat Silver-Plated |
| Housing Material | Polycarbonate |
| Mating Cycles | Greater than 1,000 |
| Direct Replacement For | Anderson SB350 Series |
Compatibility
| Application | Heavy-duty electric forklift and battery charging |
| Compatible Equipment | Crown, Toyota, Raymond, Yale, Hyster electric lift trucks and pallet jacks |
Frequently Asked Questions
Q: What is the voltage and current rating for the 49220 SB350 2/0 Blue connector?
A: The 49220 is rated for 350A continuous duty at up to 600VDC. It features flat silver-plated contacts and is designed for heavy-duty electric forklift and battery charging applications.
Q: Which electric lift truck brands is the 49220 compatible with?
A: The 49220 is fully interchangeable with Anderson Power SB350 series connectors and is compatible with Crown, Toyota, Raymond, Yale, Hyster, and other electric lift truck models using 2/0 AWG to 350 MCM cable terminations.
Q: What material is the 49220 housing made from?
A: The 49220 features a genderless, keyed polycarbonate housing designed for durability in heavy-duty material handling environments.
Q: How many mating cycles does the 49220 support?
A: The 49220 is rated for greater than 1,000 mating cycles, making it suitable for frequent connection and disconnection in daily operations.
Q: What are the cross-reference part numbers for the 49220?
A: The 49220 supersedes Anderson SB350 and is equivalent to Anderson Power Products 6325G8. It also provides direct replacement functionality for Toyota equipment previously using 00590-46003-71.
