Product Description

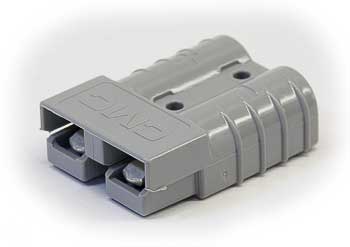

CONNECTOR (SB50 #6 GRAY)
Frequently Asked Questions
Q: What is the 5409060 connector used for on electric pallet jacks?
A: The 5409060 is an SB50 #6 connector in gray that links battery, motor, and control systems on electric lift trucks. It provides a high-current power connection point rated for the electrical load demands of electric pallet jack drive systems.
Q: Which electric pallet jack and lift truck brands use the SB50 #6 connector?
A: The SB50 #6 gray connector 5409060 is compatible with electric pallet jacks and lift trucks from Crown, Toyota, Raymond, Jungheinrich, Linde, BT, Hyster, and similar OEM manufacturers that use SB50 connector standards. Verify your equipment electrical schematic to confirm connector type and current rating match.
Q: What are the current and voltage ratings for the 5409060 SB50 #6 connector?
A: SB50 connectors are engineered for high-current DC power delivery typical of electric truck systems. The #6 designation indicates a specific contact gauge designed to handle the amperage and voltage requirements of 24V, 36V, or 48V battery systems. Confirm your equipment voltage matches before ordering to ensure safe operation.
Q: What causes the 5409060 connector to fail and how is failure identified?
A: Connector failure typically results from corrosion on contact surfaces, loose or damaged pins, or thermal damage from arcing. Signs of failure include intermittent power loss, battery not charging, sudden motor shutdown, or visible burn marks on connector contacts. Corroded or pitted contacts must be replaced to restore system reliability.
Q: Is the 5409060 connector compatible with other connector types or brands?
A: The SB50 #6 connector 5409060 is a standardized industrial connector designed for equipment in this category. It is not compatible with Anderson connectors, Deutsch connectors, or proprietary connector systems. Always match the exact connector type specified in your equipment manual to ensure safe and reliable operation.
