Incandescent Bulb for Toyota Electric Lift Truck
56637-23320-71
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

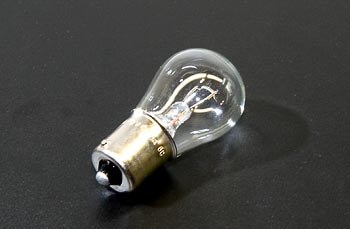

The 56637-23320-71 is a 12.8V 23.04W incandescent bulb designed specifically for rear combination lamp applications in Toyota electric lift truck models. This direct replacement bulb features a single contact bayonet base for secure, reliable mounting. Built for durability and consistent performance in demanding material handling environments, it provides approximately 400 lumens of illumination for improved visibility and safety during operation.
Specifications
Electrical
| Operating Voltage | 12.8V nominal |
| Power Rating | 23.04W |
| Luminous Flux | Approximately 400 lumens |
Material & Construction
| Bulb Type | Incandescent |
| Contact Configuration | Single contact bayonet (BA15s type base) |
| Application | Rear combination lamp for Toyota electric lift trucks |
Part Numbers
| Toyota Part Number | 56637-23320-71 |
| Compatible Model Series | 02-7FD10, 02-7FD15, 02-7FD18, 02-7FD20, 02-7FD25, 02-7FD30, 02-7FDJ35, 02-7FDK20, 02-7FDK25, 02-7FDK30, 02-7FG10, 02-7FG15, 02-7FG20, 02-7FG25, 02-7FG30, 02-7FGJ35, 02-7FGK20, 02-7FGK25, 02-7FGK30, 40-7FG15, 40-7FG20, 40-7FG23, 40-7FG25, 40-7FGK20, 40-7FGK25, 42-7FG15, 42-7FG18, 42-7FG20, 42-7FG25, 42-7FGK20, 42-7FGK25, 60-7FD20, 60-7FD25, 60-7FD30, 62-7FD20, 62-7FD25, 62-7FD30, 06-8FD20F, 06-8FD25F, 2TE15, 2TE18, 30-5SDK10, 30-5SDK11, 30-5SDK5, 30-5SDK8, 30-5SDK9, 30-8FG10, 30-8FG15, 30-8FG20, 30-8FG25, 30-8FG30, 30-8FGJ35, 32-8FG10, 32-8FG15, 32-8FG18, 32-8FG20, 32-8FG25, 32-8FG30, 32-8FGJ35, 32-8FGK20, 32-8FGK25, 32-8FGK30, 60-8FD10, 60-8FD15, 60-8FD20, 60-8FD25, 60-8FD30, 62-8FD10, 62-8FD15, 62-8FD18, 62-8FD20, 62-8FDF25, 62-8FDF30, 7FGU45, 7FGU60, 7FGU70, 7FGU80, 7FDU15, 7FDU18, 7FDU20, 7FDU25, 7FDU30, 7FDU32, 7FGCU20, 7FGCU25, 7FGCU30, 7FGCU32, 7FGU15, 7FGU18, 7FGU20, 7FGU25, 7FGU30, 7FGU32, 7FGCSU20, 7FGCU15, 7FGCU18, 8FD35U, 8FD40U, 8FD45U, 8FD50U, 8FD60U, 8FD70U, 8FD80U, 8FG35U, 8FG40U, 8FG45U, 8FG50U, 8FG60U, 8FG70U, 8FG80U, 8FGC35U, 8FGC45U, 8FGC55U, 8FGC60U, 8FGC70U, 8FG18B, 8FG25B, 8FG30B, 8FGCSU20, 8FGCU15, 8FGCU18, FDZN20, FDZN25, FDZN30, FGZN20, FGZN25, FGZN30 |
Frequently Asked Questions
Q: What is the voltage and wattage specification for the 56637-23320-71 bulb?
A: The 56637-23320-71 is a 12.8V 23.04W incandescent bulb designed for rear combination lamp applications in Toyota electric lift truck models.
Q: Which Toyota lift truck models use the 56637-23320-71 bulb?
A: The 56637-23320-71 is compatible with Toyota electric lift truck models including 02-7FD10, 02-7FD15, 02-7FD18, 02-7FD20, 02-7FD25, 02-7FD30, 02-7FDJ35, 02-7FDK20, 02-7FDK25, 02-7FDK30, 02-7FG10, 02-7FG15, 02-7FG20, 02-7FG25, 02-7FG30, 02-7FGJ35, 02-7FGK20, 02-7FGK25, and 02-7FGK30.
Q: What type of base does the 56637-23320-71 bulb use?
A: The 56637-23320-71 features a single contact bayonet base for secure mounting in rear combination lamp assemblies on Toyota lift trucks.
Q: Is the 56637-23320-71 an OEM Toyota part?
A: Yes, the 56637-23320-71 is an OEM Toyota part number specified for use in Toyota electric lift truck models as documented in the manufacturer specifications.
