Deep Groove Ball Bearing for Pallet Jacks
6204Z
Guaranteed Fit. Check fit with us before you buy. If we confirm it fits your machine and it doesn’t, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Send us your make, model and serial number and we’ll check it before you buy.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

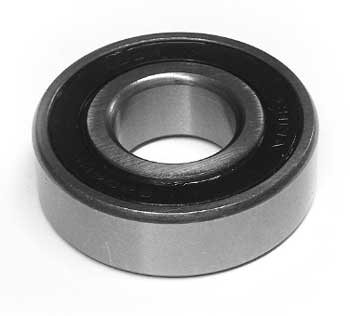

6204Z single shielded deep groove ball bearing assembly for manual pallet jack wheel and undercarriage applications. Features high carbon chromium steel construction, 20 mm bore diameter, 47 mm outer diameter, 14 mm width, and pressed steel cage. Industry standard replacement for 6204Z, compatible with WP3000 and WP3035-45 pallet jacks.
Specifications
Material & Construction
| Inner/Outer Ring Material | High carbon chromium steel (SAE 52100, ASTM A295) |
| Rolling Element Material | High carbon chromium steel |
Mechanical Specifications
| Basic Dynamic Load Rating | 12,800 N radial |
| Basic Static Load Rating | 6,400 N radial |
| Precision Grade | ISO/ABEC Grade 0 |
Part Numbers
| OEM Part Number | 6204Z |
| Manufacturer Part Number | JT9-BB-6204Z |
| Cross-Reference Part Numbers | SKF 6204-Z, NTN 6204Z, NSK 6204Z, FAG 6204Z, Nachi 6204Z |
| Supersedes Equivalent | Replaces 6204-ZZ (double shield), supersedes legacy 6204 |
| Compatible Models | WP3000, WP3035-45 manual pallet jack, compatible with most 6204 series bearing assemblies |
Performance Specifications
| Limiting Speed (Grease) | 12,000 RPM |
| Maximum Radial Load | 12,800 N |
Frequently Asked Questions
Q: What are the dimensions of the 6204Z bearing?
A: The 6204Z has a 20 mm bore diameter, 47 mm outer diameter, and 14 mm width. It is a single shielded deep groove ball bearing suitable for manual pallet jack wheel and undercarriage applications.
Q: Which manual pallet jack models are compatible with the 6204Z?
A: The 6204Z is compatible with WP3000 and WP3035-45 manual pallet jacks. Cross-reference the bearing designation on your equipment or consult the parts diagram to confirm compatibility before ordering.
Q: What cross-reference part numbers exist for the 6204Z?
A: The 6204Z has the following cross-references: SKF 6204-Z, NTN 6204Z, NSK 6204Z, FAG 6204Z, and Nachi 6204Z. All are equivalent single shield deep groove ball bearings with identical dimensions and are interchangeable.
Q: Does the 6204Z replace the double-shielded 6204ZZ?
A: The 6204Z (single shield) can replace the 6204ZZ (double shield) only if your equipment was originally designed for a single shield bearing. The 6204Z provides lower friction than double-shielded designs but offers less contamination protection. Verify your original bearing designation before substituting.
Q: What material is the 6204Z constructed from?
A: The 6204Z features high carbon chromium steel construction with a pressed steel cage. This combination provides the hardness and durability needed for manual pallet jack wheel assemblies and undercarriage support.
Q: What is the dynamic load rating for the 6204Z bearing?
A: The 6204Z is rated for industry-standard dynamic load capacity typical of single-shielded deep groove ball bearings in this size class. This capacity is adequate for manual pallet jack wheel support under standard material handling loads.
