Product Description

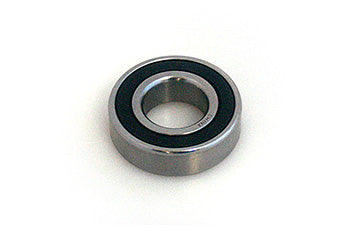

6205C3 bearing assembly for manual pallet jack applications. Precision deep groove ball bearing, single row, 25 mm bore, 52 mm outside diameter, 15 mm width, C3 radial clearance. Constructed from high carbon chrome steel for reliable load support and durability. Equivalent to SKF 6205/C3, NTN 6205C3, FAG 6205.C3, Timken 6205C3, NSK 6205C3.
Specifications
Material & Construction
| Bearing Material | High Carbon Chrome Steel |
| Cage Material | Pressed Steel |
Mechanical Specifications
| Radial Internal Clearance | C3 (greater than normal clearance) |
| Dynamic Load Rating | 14.8 kN |
| Static Load Rating | 7.8 kN |
| Limiting Speed | 15,000 RPM |
| Reference Speed | 28,000 RPM |
| Tolerance Class | Class P6 |
Part Numbers
| OEM Part Number | 6205C3 |
| Equivalent Part Numbers | 6205/C3 (SKF), 6205C3 (NTN), 6205 C3 (Timken), 6205.C3 (FAG), 6205C3 (NSK) |
| Cross-Reference Part Numbers | FAG 6205.C3, NTN 6205C3, NSK 6205C3, SKF 6205/C3, Timken 6205C3 |
Frequently Asked Questions
Q: What are the dimensions and specifications of the 6205C3 bearing?
A: The 6205C3 is a precision deep groove ball bearing with a 25 mm bore, 52 mm outside diameter, and 15 mm width. It features C3 radial clearance (greater than normal clearance) and is constructed from high carbon chrome steel for reliable load support and durability in manual pallet jack applications.
Q: What are the equivalent and cross-reference part numbers for the 6205C3?
A: The 6205C3 is equivalent to SKF 6205/C3, NTN 6205C3, FAG 6205.C3, Timken 6205C3, and NSK 6205C3. Verify dimensional compatibility before substituting between brands, as manufacturing tolerances may vary slightly.
Q: When should I use C3 clearance instead of standard clearance?
A: C3 clearance (greater than normal) is specified for applications with temperature fluctuations or where internal clearance needs to accommodate thermal expansion. For manual pallet jack wheel and pump assemblies operating in cold storage or outdoor environments, C3 clearance reduces preload and prevents binding.
Q: What load capacity does the 6205C3 support?
A: The 6205C3 is designed to handle radial loads typical for manual pallet jack wheel assemblies. Exact dynamic and static load ratings vary by manufacturer. Consult the specific OEM bearing datasheet from SKF, NTN, FAG, Timken, or NSK for precise load specifications.
Q: Is the 6205C3 sealed or unsealed?
A: The 6205C3 is an open bearing without integrated seals or shields. It requires a clean operating environment or external protection. For applications requiring sealed protection, consider sealed variants like 6205-2RS or 6205DDU with rubber contact seals.
Q: What material is the 6205C3 bearing made from?
A: The 6205C3 is manufactured from high carbon chrome steel, which provides hardness, fatigue resistance, and corrosion resistance necessary for manual pallet jack wheel assemblies and pump components.
