Deep Groove Ball Bearing Assembly for Pallet Jack
6206-Z
Guaranteed Fit. Check fit with us before you buy. If we confirm it fits your machine and it doesn’t, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Send us your make, model and serial number and we’ll check it before you buy.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

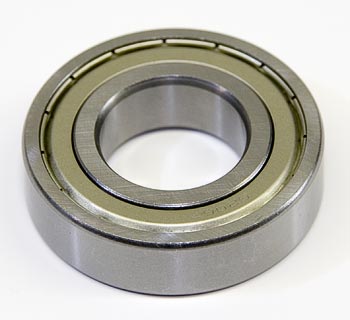

Single row deep groove ball bearing assembly, SKU 6206-Z, features a single pressed metal shield, 30 mm inner bore, 62 mm outer diameter, and 16 mm width. Rated at 20,300 N dynamic and 11,200 N static load. C3 clearance, maximum speed 15,000 RPM. Manufactured from high-carbon chromium steel, suitable for pallet jack and material handling applications.
Specifications
Material & Construction
| Finish/Coating | Machined steel, no surface coating specified |
Part Numbers
| OEM Part Number | 6206-Z |
| Manufacturer Part Number | 6206 ZJEM (SKF), 6206Z (NSK), 6206Z (NTN/SNR) |
| Cross-Reference Part Numbers | Replaces: 6206Z, 6206-ZJEM, 6206Z04, 6206 Z, Equivalent: 6206ZZ (double shield variant); No further cross-reference part numbers available. |
Frequently Asked Questions
Q: What are the specifications and load ratings for the 6206-Z bearing?
A: The 6206-Z has a 30 mm bore, 62 mm outer diameter, and 16 mm width. Dynamic load capacity is 20,300 N. Static load capacity is 11,200 N. Maximum speed is 15,000 RPM. C3 clearance provides extra internal clearance for thermal expansion. Single pressed metal shield (Z) protects one side.
Q: Which material handling equipment is compatible with the 6206-Z?
A: The 6206-Z is used in manual pallet jacks, electric pallet jacks, and load wheel assemblies from Crown, Toyota, Raymond, Yale, Hyster, Clark, and CAT. It is a standard industrial bearing suitable for general material handling applications. Verify 30 mm shaft diameter before ordering.
Q: What brands manufacture the 6206-Z bearing equivalent?
A: The 6206-Z is manufactured under equivalent designations by SKF (6206-ZJEM), NSK (6206Z), NTN (6206Z), and SNR (6206Z). The double-shield variant (6206-ZZ) is also available if additional protection is needed. Cross-reference your original bearing marking to confirm compatibility.
Q: Why is high-carbon chromium steel used in the 6206-Z bearing?
A: High-carbon chromium steel provides superior hardness, wear resistance, and load capacity. This material withstands the dynamic forces and impacts typical in pallet jack and material handling applications. It resists corrosion better than plain steel, extending bearing life in industrial and outdoor environments.
Q: Is the 6206-Z sealed or open, and what does that mean for maintenance?
A: The 6206-Z has a single metal shield (Z), which provides partial dust protection but is not fully sealed. It is not pre-lubricated like rubber-sealed bearings. For sealed, maintenance-free operation, choose the 6206-2RS or 6206-ZZ. Single-shield bearings require periodic inspection in wet or dusty environments.
