Product Description

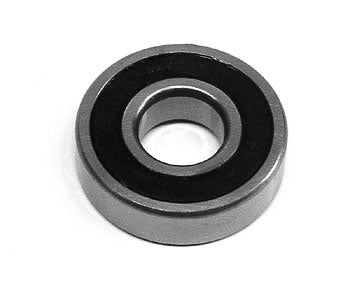

6305Z bearing assembly for manual pallet jack wheels, featuring a single metal shield, 62 mm OD, 24.95 mm bore, and 16.97 mm width. Compatible with multiple pallet jack models using SAE 52100 steel construction. Equivalent to part numbers 6305-Z and BG6305Z.
Specifications
Material & Construction
| Material Specification | SAE 52100 chromium steel |
| Bearing Cage Material | Pressed steel |
Part Numbers
| OEM Part Number | 6305Z |
| Manufacturer Part Number | 6305Z |
| Equivalent Part Numbers | 6305-Z, BG6305Z |
| Cross-Reference Part Numbers | BG6305Z, 6305-Z |
Frequently Asked Questions
Q: What are the exact dimensions of the 6305Z bearing assembly?
A: The 6305Z has a 24.95 mm bore diameter, 62 mm outer diameter, and 16.97 mm width. These dimensions conform to ISO 6300 series deep groove ball bearing standards for manual pallet jack wheel compatibility.
Q: What is the material construction of 6305Z?
A: The bearing is manufactured from SAE 52100 chromium steel with a pressed-steel cage and a single metal shield. The single-shield design provides basic protection against dust and debris while maintaining standard industrial load ratings.
Q: Which pallet jack models are compatible with 6305Z?
A: The 6305Z is used in manual pallet jack models from Crown, Toyota, Raymond, Hyster, and similar manufacturers. Verify bore and outer diameter match your existing equipment specifications to ensure correct replacement.
Q: What are the cross-reference part numbers for 6305Z?
A: The 6305Z is equivalent to 6305-Z and BG6305Z. These part numbers are direct equivalents and fully interchangeable for manual pallet jack load wheel applications.
Q: Is the 6305Z bearing pre-lubricated and ready for use?
A: Yes, the bearing arrives pre-lubricated with grease and requires no additional lubrication before installation. The single metal shield protects the bearing from contamination while allowing adequate grease retention for standard manual pallet jack duty cycles.
