Bearing Assembly for Manual Pallet Jack
6306-RS-Q
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description

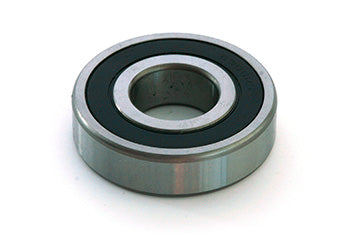

6306-RS-Q bearing assembly for manual pallet jack parts by Liftsplus.com. Deep groove ball bearing, 30 mm bore, 72 mm outside diameter, 19 mm width, sealed single row type. Cross-referenced for use as a replacement in compatible equipment. Rated up to 29.5 kN dynamic load and 15 kN static load. High carbon chromium steel construction.
Specifications
Part Numbers
| OEM Part Number | 6306-RS-Q |
| Manufacturer Part Series | 6306 |
Frequently Asked Questions
Q: What are the dimensions and load ratings for the 6306-RS-Q bearing?
A: The 6306-RS-Q has a 30 mm bore, 72 mm outside diameter, and 19 mm width with single-row sealed design. It is rated for 29.5 kN dynamic load and 15 kN static load, making it suitable for standard manual pallet jack wheel load transfer applications.
Q: What is the difference between the 6306-RS-Q single seal design and double shield bearings?
A: The 6306-RS-Q uses a sealed single-row configuration, meaning protective sealing is optimized for single-direction load and reduced friction compared to double-shield designs. This configuration is ideal for manual pallet jack applications where simplicity and standard performance meet operational requirements.
Q: What is the material specification for the 6306-RS-Q bearing?
A: The 6306-RS-Q is manufactured from high carbon chromium steel, which provides hardness, wear resistance, and reliability in repeated load cycling. This material choice is standard across manual pallet jack bearing applications for Crown, Toyota, Raymond, and equivalent equipment.
Q: How should I verify that the 6306-RS-Q is the correct replacement for my pallet jack?
A: Cross-reference your current bearing SKU with the 6306-RS-Q by checking bore (30 mm), outside diameter (72 mm), width (19 mm), and confirming it fits a single-row sealed application. Load ratings of 29.5 kN dynamic and 15 kN static should align with your equipment specifications.
Q: What are typical failure symptoms that indicate the 6306-RS-Q bearing needs replacement?
A: Listen for grinding noise, play or movement in the wheel assembly, resistance to rotation, or rough operation during pallet jack use. These symptoms indicate internal ball or race wear. Inspect for leaking grease or rust at the seal. Any of these signals require bearing replacement.
Q: What OEM equipment brands use 6306-RS-Q equivalent bearings?
A: The 6306-RS-Q is compatible with manual pallet jacks from Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, and other major material handling equipment manufacturers that use standard 30 mm x 72 mm x 19 mm deep groove ball bearing specifications.
