Product Description

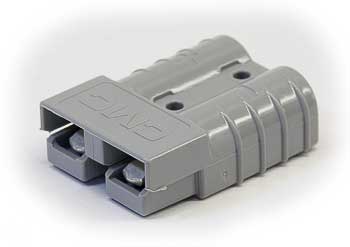

The 6317 is a 50-amp SB50 battery connector rated for #6 AWG wire, designed specifically for control circuits and auxiliary power applications on electric lift trucks. Built for reliability and direct replacement use across multiple lift truck platforms, this gray connector provides secure, dependable power distribution in lower-current auxiliary systems. Ideal for service, repair, and modernization projects on Crown, Toyota, Raymond, Yale, and other leading electric lift truck brands.
Specifications
Physical Specifications
| Connector Type | SB50 #6 |
| Current Rating | 50A Continuous |
| Wire Gauge | #6 AWG |
| Maximum Voltage | 600VDC |
Compatibility
| Compatible Voltages | 48V, 80V, 120V Systems |
| Application | Control Circuits, Auxiliary Power Connections, Lower-Current Battery Branches |
Frequently Asked Questions
Q: What is the current rating for the SB50 #6 connector?
A: The 6317 SB50 #6 connector is rated for 50A continuous current. This lower-current rating makes it suitable for control circuits and lower-amperage auxiliary applications on lift trucks.
Q: What wire sizes does this connector accept?
A: The 6317 is designed for #6 AWG wire. This gauge is used in control circuits, auxiliary power connections, and lower-current battery branches on electric lift trucks.
Q: How does the SB50 connector differ from the SB175?
A: The SB50 #6 is rated for 50A and accepts #6 AWG wire, while the SB175 1/0 is rated for 175A and accepts 1/0 AWG wire. The SB50 is used for lower-current applications; the SB175 is for main battery and high-current connections.
Q: What is the voltage rating for the 6317?
A: The 6317 SB50 #6 connector typically supports 600VDC maximum, providing compatibility with standard electric lift truck battery voltages of 48V, 80V, and 120V.
Q: Which lift truck brands use SB50 #6 connectors?
A: SB50 connectors are found on Crown, Toyota, Raymond, Yale, and other electric lift trucks for control circuits and auxiliary connections. Verify your equipment documentation to confirm the exact connector type needed.
