Product Description

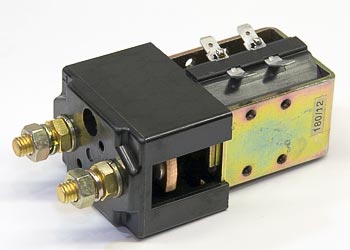

12VDC DC magnetic contactor for electric lift trucks and forklifts, rated for 200A intermittent duty, with heavy-duty screw terminals, sealed housing IP67, and universal mounting orientation.
Specifications
Electrical
| Coil Voltage | 12VDC nominal |
| Main Circuit Rated Current | 200 amps intermittent |
| Contact Form | DPDT, 2 normally open + 2 normally closed |
| Voltage Acceptable Range | 9.6VDC to 14.4VDC (±20%) |
| Contact Voltage Drop | ≤80 mV at 100A load |
| Pull-in Time | ≤30 ms |
| Drop-out Time | ≤20 ms |
| Coil Power Consumption | ≤28 W (intermittent operation) |
| Dielectric Strength | 1000 VAC at 60 Hz, 1 minute |
Material & Construction
| Enclosure Protection | IP67 sealed housing |
Part Numbers
| Manufacturer Part Number | 7001652 |
| OEM Part Number | CL7001652 |
Frequently Asked Questions
Q: What are the key specifications for 7001652?
A: Contactor 7001652 is a 12VDC unit rated for 200 amps intermittent duty with DPDT contact form (2 normally open, 2 normally closed). It operates within 9.6VDC to 14.4VDC (plus or minus 20%) and features IP67 sealed housing for moisture and dust protection. Contact voltage drop is 80 millivolts at 100A load with heavy-duty screw terminals.
Q: What does IP67 rating mean for 7001652?
A: IP67 means the contactor is completely dust-tight and can withstand temporary submersion in water up to 1 meter for 30 minutes. This sealed housing protects internal contacts and coil from moisture, dirt, and harsh wet environments common in material handling.
Q: Is 7001652 compatible with Crown, Toyota, and Raymond lift trucks?
A: Yes, 7001652 works with 12VDC electric lift trucks from Crown, Toyota, Raymond, Yale, and similar manufacturers. Its universal mounting orientation and standard electrical specifications fit multiple OEM configurations. Always verify coil voltage and amperage requirements match your equipment.
Q: What is the difference between continuous and intermittent duty ratings?
A: Intermittent duty (7001652 rating) means the contactor operates for limited periods with rest intervals between cycles. It cannot run continuously without overheating. Continuous duty contactors are rated for non-stop operation. Select the contactor type matching your equipment duty cycle.
Q: Can 7001652 be mounted in any orientation?
A: Yes, 7001652 features universal mounting orientation capability. However, verify clearance for screw terminal connections and ensure ventilation around the unit. The sealed housing protects contents regardless of position.
