Product Description

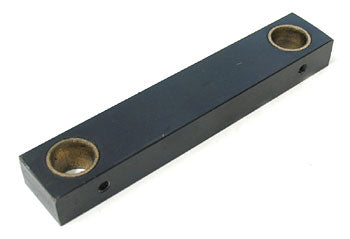

The LINK assembly 800015538 is a critical mechanical linkage component for electric forklifts and lift trucks. It connects hydraulic lift cylinders to the mast structure, transmitting lifting force while controlling vertical travel, tilt angle, and load stability during load handling operations. This direct replacement assembly is designed for use across Crown, Toyota, Raymond, Yale, Hyster, and similar electric lift truck platforms with compatible mast designs. Built for reliability and durability in demanding warehouse and industrial environments.
Frequently Asked Questions
Q: What is a LINK assembly used for in electric lift truck applications?
A: A LINK assembly is a mechanical linkage component that connects the hydraulic lift cylinders to the mast or chassis structure. It transmits lifting force and controls the vertical travel, tilt angle, and load stability of the mast assembly during load handling operations.
Q: Which electric lift truck models use the 800015538 LINK assembly?
A: This LINK assembly is used on electric lift trucks from Crown, Toyota, Raymond, Yale, Hyster, and similar OEMs with compatible mast designs. Verify compatibility by comparing the mounting holes, rod pin diameters, and attachment points against your truck mast assembly.
Q: What is the function of the LINK assembly in the truck lift circuit?
A: The LINK assembly provides the mechanical motion transfer between the hydraulic lift cylinders and the mast. It maintains proper load distribution during lifting, prevents mast sway, and ensures synchronized cylinder extension for level load handling. The linkage design also controls the reach and load-over-extension characteristics.
Q: What materials is the 800015538 LINK assembly constructed from?
A: Industrial LINK assemblies are typically constructed from forged steel or ductile iron for strength and durability. Check the component drawing or OEM documentation for exact material specification, as some variants use aluminum or composite reinforced designs for specific truck models.
Q: What failure symptoms indicate the LINK assembly needs replacement?
A: Common failure signs include excessive mast sway or wobbling during load handling, uneven load tilt, unusual grinding or clicking sounds during lift cycles, visible cracks in the linkage structure, or loose pin connections at attachment points. Worn pins, bushings, or fractured welds require immediate replacement to prevent load dropping.
Q: What is the expected service life of the 800015538 LINK assembly under normal operating conditions?
A: With proper maintenance and standard-duty use, a LINK assembly typically lasts 8 to 15 years. High-intensity operations, overloads, or inadequate maintenance reduce lifespan significantly. Wear pin replacements may extend overall assembly life before full replacement becomes necessary.
