Product Description

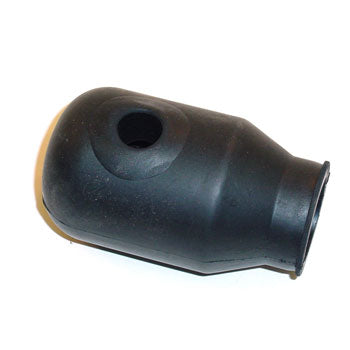

Reservoir (oil tank) for manual pallet jack, rubber construction, OEM Part HPS-165H; 35 mm top hole, 16 mm side hole, overall height 105 mm, overall diameter 60 mm; includes O-ring seal and filler plug; capacity 1 pint; compatible with manual pallet jack hydraulic units.
Specifications
Material & Construction
| Reservoir Material | Rubber |
Mechanical Specifications
| Reservoir Capacity | 1 pint |
Part Numbers & Compatibility
| OEM Part Number | HPS-165H |
Frequently Asked Questions
Q: What are the dimensions and capacity of the 800086745 reservoir?
A: The 800086745 reservoir has an overall height of 105 mm and overall diameter of 60 mm. The top fill hole is 35 mm diameter and the side outlet hole is 16 mm diameter. Total capacity is 1 pint.
Q: What material is the 800086745 reservoir made from?
A: The 800086745 is constructed from durable rubber, which provides vibration damping and resists corrosion from mineral-based hydraulic oils. The rubber compound tolerates typical pallet jack operating temperatures and pressures.
Q: Which manual pallet jack hydraulic units use the 800086745 reservoir?
A: The 800086745 is compatible with manual pallet jack hydraulic units from Crown, Toyota, Raymond, Yale, and other OEM manufacturers that require a 1-pint rubber reservoir with 35 mm top hole and 16 mm side hole configuration. Verify mounting hole locations match before ordering.
Q: What components are included with the 800086745?
A: The 800086745 includes the rubber reservoir, an O-ring seal, and a filler plug. The O-ring prevents oil leakage at the connection point. Replace the O-ring if it becomes cracked, hardened, or if leaks develop after assembly.
