Product Description

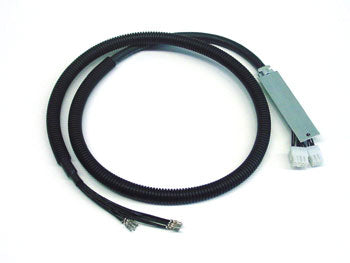

Wire harness
Specifications
Product Overview
| Product Type | Electrical Wire Harness |
Physical Specifications
| Function | Electrical circuit connector and power distribution |
| Connector Type | Manufacturer-specific (verify with equipment model) |
| Wire Gauge | Amperage-rated for circuit (verify with equipment model) |
| Voltage Rating | Typically 24V, 48V, or 80V (verify with equipment specifications) |
| Condition | New / Direct Replacement |
Compatibility
| Application | Electric Lift Trucks, Electric Forklifts, Electric Pallet Jacks |
Frequently Asked Questions
Q: What is the 805867-1 wire harness and which electric lift trucks does it fit?
A: The 805867-1 is an electrical wire harness for electric lift truck applications. This harness is used to connect electrical components such as motors, solenoids, controllers, or hydraulic valve solenoids on electric lift trucks. Verify your equipment manufacturer, model number, and serial range to confirm this harness is the correct fitment for your specific truck.
Q: What voltage and electrical specifications apply to the 805867-1?
A: The 805867-1 wire harness voltage and amperage specifications depend on your lift truck platform (Crown, Toyota, Raymond, Jungheinrich, Linde, etc.) and the specific electrical circuit it services. Confirm your equipment voltage (typically 24V, 48V, or 80V for forklifts), amperage rating, and component connections. Contact us with your equipment details for exact electrical specifications.
Q: What are the connector types and wire gauge for the 805867-1?
A: The 805867-1 harness features specific connectors and wire gauges matched to your lift truck platform and electrical circuit. Connector types may include Deutsch, Molex, or OEM proprietary connectors. Wire gauge is selected to handle the circuit amperage safely. Provide your equipment model and part location so we can confirm exact connector types and gauge specifications.
Q: What symptoms suggest the 805867-1 wire harness needs replacement?
A: Signs of harness failure include loss of electrical function in a specific circuit (no power to motor, solenoid, or controller), intermittent electrical operation that cuts in and out, visible damage to wire insulation or connectors (burned, melted, or corroded connectors), exposed copper strands, or burned wire smell. Electrical circuit malfunction can render lift functions inoperative.
Q: Is the 805867-1 compatible with multiple lift truck brands or model-specific?
A: The 805867-1 is model-specific or platform-specific depending on the standardization practices of the original equipment manufacturer. Some wire harnesses are used across multiple platforms; others are unique to a single manufacturer or model line. Verify your lift truck brand (Crown, Toyota, Raymond, etc.), model number, and serial range to confirm this harness is compatible.
