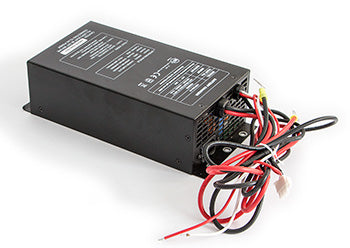

Charger, on Board (120V 60Hz)

$652.68
$652.68 $780.46
In stock
⚠️ Compatibility Recommended Before Purchase
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.

Before ordering, confirm:
  • Truck make and model
  • Serial number
  • Battery voltage
  • Battery type (lead-acid vs lithium)
  • Connector style

If you’re unsure, contact us before purchasing with your equipment details.

Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.

Questions? Call +1-800-669-7554
Battery Chargers Charger Electric Lift Truck Parts On Board Charger

Compatibility

Make -
Model -

Reference Diagrams

Visit our diagram page for part references to popular models

Product Description

Charger, on-board type for electric lift trucks. Model 810695 by Liftsplus.com supports 120V 60Hz input, provides single-bank 28VDC output (15A max), compatible with lead acid, sealed AGM, and gel batteries. Programmable with multiple charge profiles and integrated float maintenance. Cast metal enclosure with on-board mounting.

Specifications

Electrical
Input Voltage120VAC single phase
Input Frequency60 Hz
Output Voltage - Charging28VDC
Output Voltage - Float27VDC
Maximum DC Output Current15A
Maximum AC Input Current4A
Part Numbers
OEM Part Number810695
Manufacturer Part Number810695

Frequently Asked Questions

Q: What is the 810695 on-board charger?
A: The 810695 is an on-board charger for electric lift trucks. It converts 120VAC single-phase power to 28VDC charging output for truck battery systems. On-board mounting allows convenient charging without removing batteries or using external charging equipment.

Q: What are the input and output specifications for the 810695?
A: The 810695 accepts 120VAC single-phase 60 Hz input power with maximum 4A AC input current. Output specifications include 28VDC charging voltage at 15A maximum DC output current and 27VDC float maintenance voltage. The charger is designed for standard North American electrical supplies.

Q: Which battery types are compatible with the 810695?
A: The 810695 supports lead acid, sealed AGM, and gel battery types. The charger features programmable charge profiles enabling optimization for each battery chemistry. Verify battery type and voltage rating match your truck specifications before charging.

Q: What charging capacity and current does the 810695 provide?
A: The 810695 provides single-bank charging at 15A maximum DC output current. This output capacity is suitable for standard electric lift truck battery systems rated at 28VDC. Actual charge time depends on battery capacity, state of charge, and temperature conditions.

Q: Does the 810695 work with different voltage systems?
A: The 810695 is configured for 28VDC output and 120VAC input. It is not compatible with 36VDC, 48VDC, or other voltage systems. Verify your truck battery voltage rating matches 28VDC nominal before selecting this charger. Using incorrect voltages will damage batteries and the charger.

Q: What maintenance does the 810695 charger require?
A: The 810695 features a cast metal enclosure designed for industrial environments. Integrated float maintenance circuitry automatically manages long-term battery storage. Periodically inspect connections and enclosure for corrosion. Ensure adequate ventilation around the charger during operation.
