Product Description

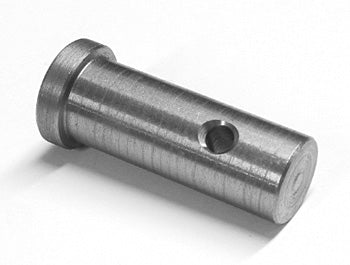

Shoulder pin
Specifications
Product Overview
| Product Type | Shoulder Pin Fastener |
Physical Specifications
| Material | Carbon Steel or Stainless Steel (application dependent) |
| Primary Function | Pivot point and component alignment in lift truck assemblies |
| Key Feature | Enlarged shoulder prevents lateral sliding and maintains spacing |
| Finish Options | Plain steel, zinc-plated, stainless steel for corrosion resistance |
Compatibility
| Applications | Load arms, hydraulic cylinder pivot points, wheel mounting assemblies, fork tilt mechanisms |
| Compatible Equipment Categories | Electric pallet jacks, manual pallet jacks, walkie stackers, ride-on lift trucks |
Frequently Asked Questions
Q: What is a shoulder pin used for in lift truck equipment?
A: A shoulder pin is a fastener that secures and aligns pivot points, load arms, and structural components in electric pallet jacks, hand pallet jacks, and stackers. The shoulder design prevents lateral movement and keeps components properly spaced.
Q: What types of material handling equipment use shoulder pins like the 914060?
A: Shoulder pins are found in equipment from Crown, Toyota, Raymond, Yale, Hyster, and other lift truck manufacturers. They are commonly used in load arms, hydraulic cylinder pivot points, and wheel mounting assemblies.
Q: How do I know when a shoulder pin needs replacement?
A: Signs of a failing shoulder pin include excessive play in the load arms, lateral movement of wheels, misalignment of forks, loose-feeling pivot points, or metal-on-metal rattling during equipment operation.
Q: What is the functional difference between a shoulder pin and a standard pin?
A: A shoulder pin has an enlarged section (the shoulder) near the head that prevents the pin from sliding through its bore. This design maintains precise spacing between components and prevents lateral shifting that standard pins cannot control.
Q: What materials resist corrosion in shoulder pins?
A: Stainless steel shoulder pins resist rust and corrosion, making them ideal for equipment used in wet environments, cold storage, or outdoor applications. Carbon steel pins are suitable for dry warehouse environments.
