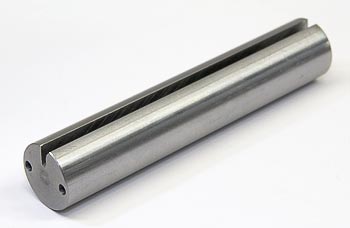

Pivot Shaft for Manual Pallet Jack
A000010692
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description
Pivot shaft
Specifications
Product Overview
| Product Type | Pivot Shaft |
Physical Specifications
| Material | High-Carbon Steel (typical) |
| Primary Function | Rotational axis for fork tilting and control |
| Typical Features | Keyway or spline drive, threaded ends, shoulder steps |
| Inspection Criteria | Check for bending, cracks at keyway, corrosion reducing smooth rotation |
Compatibility
| Application | Pallet Jacks, Hand Trucks, Lift Equipment |
| Compatible Equipment Brands | Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich |
Frequently Asked Questions
Q: What is a pivot shaft and what does it do?
A: A pivot shaft is a rotating rod or pin that serves as the primary axis point for controlled movement or rotation of equipment components. In material handling equipment, pivot shafts allow platforms, forks, or mechanisms to tilt, swivel, or change angle. They are stressed components that must support equipment weight and load.
Q: What equipment does the A000010692 pivot shaft fit?
A: This pivot shaft is designed for pallet jacks, hand trucks, and lift equipment from Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, and other material handling manufacturers. Confirm your equipment model and verify shaft diameter and length match your assembly before ordering.
Q: What dimensions are critical for pivot shaft replacement?
A: Key specifications include overall length, shaft diameter, keyway or spline type, thread size on either end, and shoulder or step dimensions. Incorrect length or diameter will cause binding or excessive play. Measure your current shaft carefully or provide your equipment model for exact dimensions.
Q: How do I know if a pivot shaft needs replacement?
A: Replace a pivot shaft if you observe excessive horizontal or vertical play in the pivot point, grinding or squeaking during rotation, visible bending or deflection, rust or corrosion reducing smooth movement, or cracks at the shoulders or keyway. These signs indicate the shaft has lost integrity and creates safety risk.
Q: What material is used for the A000010692 pivot shaft?
A: Pivot shafts are typically fabricated from high-carbon or alloy steel to handle rotational stress and bearing loads. Some applications use heat-treated steel for added strength. The exact material grade depends on the load rating and duty cycle of your equipment.
Q: Are there cross-reference part numbers for this pivot shaft?
A: Pivot shafts vary by equipment model and load class. If you have an original part number or specific equipment model and serial range, provide it and we can confirm if the A000010692 is the correct match or identify an equivalent part from different manufacturers.
