A000034613

Frequently Asked Questions

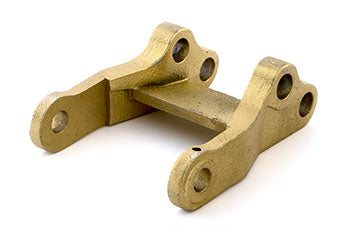

Q: What is the A000034613 structural bell crank used for?
A: The A000034613 is a structural bell crank (riser load wheel) designed for vertical stabilizer internal mounting on manual and electric pallet jacks. It provides load distribution and structural support within the mast assembly.

Q: What are the specifications of the A000034613 bell crank?
A: The A000034613 features a carbon steel axle (3 mm / 0.118 inch diameter, 14 mm / 0.551 inch length) and injection molded polymer construction. Clevis pin spacing is 21.5 mm (0.846 inch), designed specifically for vertical stabilizer internal mounting applications.

Q: Which pallet jack models is the A000034613 bell crank compatible with?
A: The A000034613 is compatible with multiple manual and electric pallet jack models from Crown, Toyota, Raymond, Yale, and other major OEM manufacturers. Verify that the clevis pin spacing (21.5 mm) and axle diameter (3 mm) match your vertical stabilizer assembly.

Q: Why is the A000034613 constructed with injection molded polymer?
A: Injection molded polymer provides weight reduction compared to all-steel designs while maintaining structural rigidity in vertical stabilizer applications. The carbon steel axle delivers load-bearing capability where needed most. This design reduces frame stress and extends equipment life.

Q: What signs indicate the A000034613 bell crank needs replacement?
A: Replace the bell crank if the polymer is cracked, splintered, or deformed, if the carbon steel axle is bent or corroded, or if the riser assembly shows misalignment or wobbling during load cycles. These symptoms indicate compromised structural integrity and load distribution.

Q: Is there a maintenance requirement for the A000034613 bell crank?
A: Periodic inspection is recommended to verify the polymer remains intact and the carbon steel axle shows no rust or bending. No lubrication is required. Replace as needed when wear or damage is detected to maintain vertical load stability and equipment safety.
