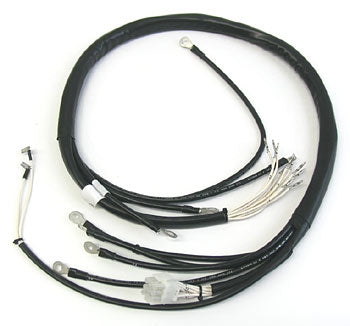

Harness Wire for Pallet Jacks
A000035657
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description
Harness, wire
Specifications
Product Overview
| Number of Conductors | 4 to 8 conductors (model-dependent) |
Physical Specifications
| Wire Gauge (AWG) | 18 to 10 AWG |
| Conductor Material | Stranded copper |
| Insulation Type | PVC or polyurethane |
| Rated Environment | Wet warehouse, indoor/outdoor use |
| Flex Cycle Rating | Suitable for repeated flexing cycles |
| Typical Service Life | 5-7 years (standard warehouse); 2-4 years (wet/corrosive environments) |
| Failure Indicators | Insulation cracking, connector oxidation, continuity test failure |
Compatibility
| Applications | Control circuits, solenoid activation, limit switches, load cells, motor control systems |
| Compatible Equipment | Electric pallet jacks, ride-on lift trucks, powered material handlers |
Frequently Asked Questions
Q: What is the A000035657 harness wire used for in material handling equipment?
A: The A000035657 harness wire is a multi-conductor electrical assembly that connects control circuits, solenoids, limit switches, and load cells on electric pallet jacks and powered lift trucks. It routes signals and power between the operator controls and hydraulic or motor control systems.
Q: Which electric pallet jack and truck models are compatible with the A000035657 harness?
A: This harness is compatible with Crown, Toyota, Raymond, Hyster, Jungheinrich, Linde, and BT electric pallet jacks and ride-on trucks. Verify the connector type, wire gauge, and circuit count match your equipment before ordering.
Q: What happens if the A000035657 harness wire becomes damaged or corroded?
A: Damaged wires cause intermittent control failures, loss of raise or lower function, unresponsive steering, or complete equipment shutdown. Corrosion on connectors increases electrical resistance, leading to voltage drop and unreliable solenoid operation.
Q: What gauge wire and number of conductors does the A000035657 harness contain?
A: Typical harness configurations use 18 to 10 AWG wire with 4 to 8 conductors depending on the equipment model. The wire is usually stranded copper with PVC or polyurethane insulation rated for wet environments and repeated flexing cycles.
Q: How long does the A000035657 harness wire typically remain serviceable?
A: Under normal indoor warehouse conditions, expect 5 to 7 years of reliable service. In wet, outdoor, or corrosive environments, lifespan drops to 2 to 4 years. Replace if insulation cracks, connectors oxidize, or continuity tests fail.
