Product Description

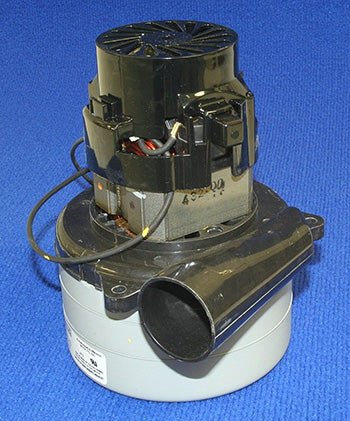

36VDC, 3-stage tangential bypass vacuum motor replacement suitable for industrial floor scrubbers. OEM spec, direct cross with Ametek 116336-13, 5.7-inch frame, 17.8A max, carbon brush, ball bearing design.
Specifications
Electrical Specifications
| Motor Voltage | 36VDC |
| Current Rating | 17.8A maximum |
Mechanical Specifications
| Fan Material | High-impact polycarbonate |
Part Numbers
| Manufacturer Part Number | 56109731 |
| Replacement/Supersedes P/N | VPADV56109731-REPL |
| Equivalent Part Number | Ametek 116336-13 |
| Cross-Reference Part Numbers | Replaces 56391208 |
Frequently Asked Questions
Q: What is the voltage and amperage specification for motor ADV56109731?
A: This motor is rated 36VDC with a maximum current draw of 17.8A. The 3-stage tangential bypass design is optimized for industrial floor scrubber vacuum systems.
Q: What Advance scrubber models use vacuum motor ADV56109731?
A: This 5.7-inch frame motor is compatible with multiple Advance floor scrubber models. Verify your equipment accepts this frame size and 36VDC voltage specification before ordering.
Q: Is this motor equivalent to Ametek 116336-13?
A: Yes, this motor is a direct cross-reference with Ametek 116336-13 and replaces OEM supersession number 56391208. All three part numbers are equivalent for fitment purposes.
Q: What bearing design does this motor use?
A: The motor features a ball bearing design with carbon brushes. This configuration provides durability for continuous-duty floor scrubber operation with reliable brush-to-commutator contact.
Q: What is the fan material composition?
A: The impeller fan is constructed from high-impact polycarbonate, which resists cracking and maintains performance under the stress of continuous vacuum operation and debris impact.
Q: How do I verify this motor is the correct replacement for my scrubber?
A: Cross-reference your equipment OEM documentation against manufacturer number 56109731, supersession 56391208, or Ametek equivalent 116336-13. Confirm 36VDC voltage requirement and 5.7-inch frame fitment in your equipment cavity before ordering.
