Contactor for Electric Lift Truck - Fits Crown, Toyota FB10P, FB14P, FB15P
AL DC182-440L
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

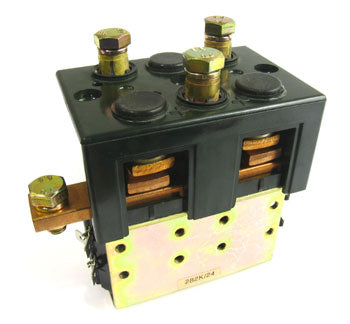

Albright DC182-440L is a monoblock reversing contactor rated for 24VDC coil voltage and 150A thermal current, designed for electric lift trucks. Features interchangeable mounting with SW182 series, M8 main studs, and 6.3mm spade coil terminals. Provides fault current breaking up to 1000A at 48VDC, and auxiliary switching up to 5A. No external cross-reference part numbers are available; supersedes SW182 series with electrical and mechanical interchangeability.
Specifications
Part Numbers & Compatibility
| Make | Crown, Toyota, Yale, Hyster, Nichiyu, Raymond, Clark, Mitsubishi, Linde, Jungheinrich |
| Model | FB10P, FB14P, FB15P, FB18P |
| Interchangeable Mounting | With SW182 series |
| Manufacturer Part Number | DC182-440L |
| Direct Replacement Part Number | DC182-440L |
Electrical Specifications
| Coil Voltage | 24VDC |
| Thermal Current Rating | 150A |
| Contact Voltage Drop (at 150A) | Normally Open: 30mV, Normally Closed: 40mV |
| Maximum Contact Voltage | 48VDC (main contact circuit) |
| Fault Current Breaking | Up to 1000A at 48VDC |
Performance Specifications
| Auxiliary Contact Switching Capability (Resistive Load) | 5A at 24VDC, 2A at 48VDC |
Additional Specifications
| Coil Power Dissipation | Continuous: 10-15W; Intermittent: 30-40W; Highly Intermittent: 40-50W |
| Typical Pull-In Time | 30ms (coil energized to contact closure) |
| Typical Drop-Out Time | 8ms (without suppression diode) |
| Contact Bounce Period | 3ms |
| Design Type | Monoblock (integrated contacts and terminals) |
| Main Studs | M8 |
| Coil Terminals | 6.3mm spade |
| Supersedes | Supersedes SW182 series (mechanical and electrical interchange, mounting and wiring differences apply) |
Frequently Asked Questions
Q: What makes and models is this part compatible with?
A: This part is compatible with electric lift trucks from Crown, Toyota, Yale, Hyster, Jungheinrich, Linde, Clark, Mitsubishi, and Raymond. It fits models such as FB10P, FB14P, FB15P, FB18P. Verify your equipment's specifications before ordering.
Q: What material is this part made from and how durable is it?
A: This part is constructed with high-quality materials designed for durability and long-term use in demanding environments. It is built to withstand the rigors of daily operation in electric lift trucks.
Q: How do I know if this part is the right replacement for my equipment?
A: To ensure compatibility, check your lift truck's specifications or consult the original equipment manual. Compare the part number and technical requirements with those of your current component to confirm it is a suitable replacement.
Q: What are the key features of this contactor?
A: This contactor is a monoblock design with integrated contacts and terminals, offering superior mechanical strength and resistance to vibration. It features a 24VDC coil voltage, 150A thermal current rating, and M8 main studs for reliable performance.
Q: What maintenance is required for this contactor?
A: Inspect the contacts annually for wear, pitting, or discoloration. Check coil terminals and M8 studs for corrosion or loose connections. Clean contacts if they show light pitting. Replace the contactor if main contacts are excessively worn or if coil resistance changes significantly.
Q: Does this contactor offer mechanical interchange with older models?
A: Yes, it supersedes the SW182 series with full mechanical and electrical interchangeability. However, mounting and wiring differences may apply. Review your lift truck's manual to confirm bracket fit and terminal routing.
Q: What is the coil power dissipation for continuous operation?
A: This contactor has a continuous coil power dissipation of 10-1W. This low dissipation reduces heat generation and extends coil life in high-cycle applications common in electric lift trucks.
