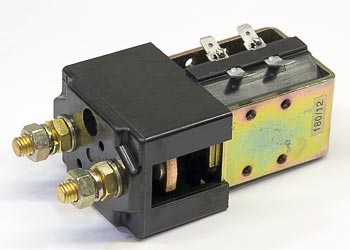

Albright sw180 dc contactor for electric pallet jacks
AL SW180-1
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description
Albright SW180 series DC contactor with 150A interrupted or 200A uninterrupted continuous duty rating, featuring SPST normally open double breaking contacts with M8 stud terminals. Available in coil voltages from 6VDC to 240VDC with optional magnetic blowouts for 96VDC operation. Designed for direct current motor switching in electric vehicle applications including industrial trucks and material handling equipment. Provides 1000A fault breaking capacity and exceeds 5 million mechanical operation
Specifications
Part Numbers & Compatibility
| Make | Albright, Curtis |
Electrical Specifications
| Peak Current Rating | 400A intermittent |
| Intermittent Current - 30% Duty Cycle | 275A interrupted / 365A uninterrupted |
| Intermittent Current - 50% Duty Cycle | 210A interrupted / 285A uninterrupted |
| Intermittent Current - 70% Duty Cycle | 180A interrupted / 240A uninterrupted |
| Drop-Out Voltage Range | 10% to 25% of nominal coil voltage |
| Contact Voltage Drop at 150A | 30mV to 40mV across new contacts per pole |
| Fault Current Breaking Capacity - Resistive Load Without Blowouts | 300A at 60VDC per UL508 |
| Fault Current Breaking Capacity - Resistive Load With Blowouts | 300A at 96VDC per UL508 |
| Dielectric Voltage Strength | 1000VAC at 50Hz for 1 minute |
| Coil Voltage Range | 6VDC to 240VDC |
Performance Specifications
| Continuous Duty Rating | 200A uninterrupted |
| Interrupted Duty Rating | 150A |
| Fault Breaking Capacity | 1000A |
Additional Specifications
| Coil Power Dissipation - Continuous Duty | 10W to 15W |
| Model Series Designation | SW180 series contactor family |
| Typical Pull-In Time | 30ms for normally open contacts to close |
| Typical Drop-Out Time - Without Suppression | 8ms for normally open contacts to open |
| Typical Drop-Out Time - With Diode Suppression | 60ms for normally open contacts to open |
| Typical Contact Bounce Period | 3ms |
| Mechanical Durability | Greater than 5,000,000 cycles |
| Magnetic Blowouts | Optional for 96VDC operation |
Frequently Asked Questions
Q: Which makes and models is this part compatible with?
A: This part is compatible with Albright and Curtis electric lift trucks.
Q: What materials are used to ensure durability?
A: The part is constructed with durable materials designed for long-term use in industrial environments.
Q: How do I know if this is the right replacement part for my equipment?
A: Check the make and model of your equipment, and ensure it matches the compatibility listed for this part.
Q: What are the key features of this contactor?
A: This contactor features spst normally open double breaking contacts and is designed for direct current motor switching in electric industrial trucks.
Q: What are the different coil voltage options available?
A: The contactor is available in coil voltages from 6vdc to 240vdc, with optional magnetic blowouts for 96vdc operation.
Q: How many mechanical operations can this part handle?
A: This part exceeds 5 million mechanical operations, making it suitable for frequent motor switching applications.
