24VDC Electric Pump Motor for Lift Trucks - Fits Nissan, Unicarriers
AL003591
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.
Before ordering, confirm:
- Equipment make and model
- Serial number (if applicable)
- Operating voltage
- Rotation direction (CW / CCW)
- Shaft diameter and length
- Mounting pattern and flange type
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

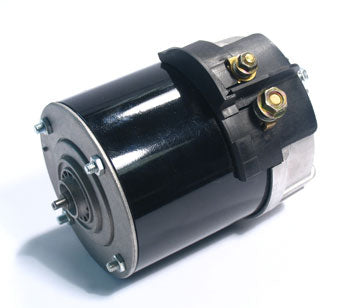

24VDC electric pump motor for lift trucks. Housing 5.00 inches OD, 11.22 inches overall length, Chrysler coupler shaft, permanent magnet DC, CW rotation, continuous duty. Replaces multiple OEM part numbers. Designed for electric hydraulic pumps in industrial lift equipment.
Specifications
Part Numbers & Compatibility
| Make | Nissan, Unicarriers |
| Cross-Reference Part Numbers | Replaces ARROWHEAD LPL0070, D468255XWF07; J&N Electrical Products 430-22032; LESTER 6190; OHIO MOTORS D468210XWF02, D468250XWF07A, D468255XWF07A, D482252X7707A; PRESTOLITE MBD5112; WESTERN MOTORS W-5112 |
| Part Number | AL003591 |
| Manufacturer Part Number | AL003591 |
| Cross Reference Part Numbers | Replaces ARROWHEAD LPL0070, D468255XWF07; J&N Electrical Products 430-22032; LESTER 6190; OHIO MOTORS D468210XWF02, D468250XWF07A, D468255XWF07A, D482252X7707A; PRESTOLITE MBD5112; WESTERN MOTORS W-5112 |
| Application | Designed for electric hydraulic pumps in industrial lift equipment |
Electrical Specifications
| Motor Voltage | 24VDC |
Wheel Dimensions
| Housing Diameter | 5.00 inches |
| Overall Length | 11.22 inches |
Performance Specifications
| Duty Cycle | Continuous duty (S1) |
Additional Specifications
| Housing Material | Steel, powder coat finish |
| Service Factor | 1.00 |
| Coupler Shaft | Chrysler coupler shaft |
| Motor Type | Permanent magnet DC |
| Rotation | CW |
Frequently Asked Questions
Q: Which lift truck brands and models does the AL003591 motor fit?
A: The AL003591 is compatible with multiple electric lift truck platforms that use 24VDC permanent magnet pump motors. Verify your equipment part number against the cross-reference list: ARROWHEAD LPL0070, D468255XWF07; J&N Electrical Products 430-22032; LESTER 6190; OHIO MOTORS D468210XWF02, D468250XWF07A, D468255XWF07A, D482252X7707A; PRESTOLITE MBD5112; WESTERN MOTORS W-5112.
Q: What type of motor does the AL003591 use?
A: The AL003591 uses permanent magnet DC (PMDC) motor technology. This design provides efficient, reliable operation at 24VDC for electric hydraulic pump applications in lift equipment.
Q: What is the duty cycle rating of the AL003591?
A: The AL003591 is rated for continuous duty operation, meaning it can run continuously under normal operating loads without thermal shutdown concerns. This rating makes it suitable for main hydraulic pump drive applications on electric lift trucks.
Q: What shaft coupling type does the AL003591 feature?
A: The AL003591 is equipped with a Chrysler coupler shaft, which mates to standard pump coupling interfaces on compatible electric lift truck hydraulic systems. Verify shaft diameter and spline configuration match your pump inlet before ordering.
Q: What makes of lift trucks is the AL003591 compatible with?
A: The AL003591 is compatible with Nissan and Unicarriers electric lift trucks that use 24VDC permanent magnet pump motors.
Q: How durable is the AL003591?
A: The AL003591 is built for long-term reliability and performance in industrial lift truck applications. Its permanent magnet DC motor design ensures consistent operation under continuous duty conditions.
Q: How do I know if the AL003591 is the right replacement part for my lift truck?
A: To ensure compatibility, verify your equipment's part number against the cross-reference list provided. The AL003591 is designed to replace multiple part numbers used in electric hydraulic pump systems on Nissan and Unicarriers.
