Product Description

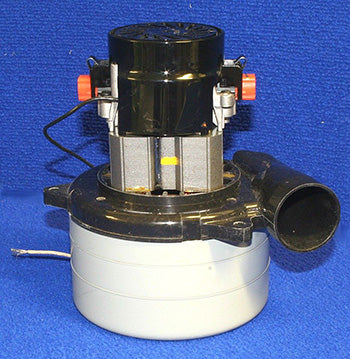

Ametek Lamb 116565-13 vacuum motor features a 3-stage tangential discharge design, 5.7-inch fan, 120V AC input, 10.7A max current, 99 CFM airflow, and 117.4" H2O sealed vacuum
Specifications
Electrical
| Voltage | 120VAC, 50/60 Hz, 1 phase |
| Maximum Amperage | 10.7 amps |
| Motor Speed | 17,700 RPM |
Part Numbers
| Manufacturer Part Number | 116565-13 |
| OEM Part Number | 116565-13 |
| Cross-Reference Part Numbers | Ametek 4M923; No other cross-reference part numbers available |
Frequently Asked Questions
Q: What are the voltage and frequency specifications for the AMT116565-13?
A: The AMT116565-13 operates at 120VAC, 50/60 Hz, single phase. Maximum amperage is 10.7 amps. Verify that your equipment power circuit is rated for at least 10.7A continuous at 120VAC single phase before installation.
Q: What airflow and vacuum specifications does the AMT116565-13 deliver?
A: The AMT116565-13 produces 99 CFM airflow with a sealed vacuum of 117.4 inches water lift (H2O). These specifications determine its suitability for specific floor scrubber and sweeper applications. Verify that your equipment requirements match these output values.
Q: What is the cross-reference part number for the AMT116565-13?
A: The AMT116565-13 cross-references to Ametek 4M923. No other equivalent cross-reference part numbers are available. If substituting, confirm compatibility with your original equipment documentation.
Q: What are the design features of the AMT116565-13?
A: The AMT116565-13 features a 3-stage tangential discharge design with a 5.7-inch fan and sealed ball bearing construction. The motor operates at 17,700 RPM and is engineered for continuous duty in industrial floor cleaning equipment.
