Product Description

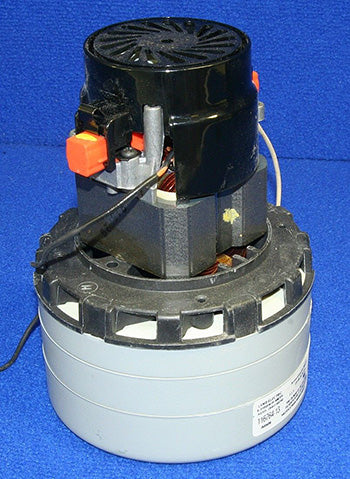

AMETEK Lamb 116764-13 three-stage peripheral bypass vacuum motor with 5.7 inch frame diameter. 120VAC series universal motor delivering 382 air watts maximum output with 100 CFM airflow capacity. Features ACUSTEK discharge technology, double ball bearing construction, and 18,000 RPM operational speed. Sealed vacuum generates 119.6 inches water lift. Rated 11.1A current draw at 1292W input power. Epoxy-coated housing with field-replaceable carbon brushes. Compatible with 50-60 Hz dual frequency o
Specifications
Electrical
| Input Voltage | 120VAC, 110-120V nominal range |
| Frequency Rating | 50-60 Hz dual frequency |
| Maximum Current Draw | 11.1A at rated voltage |
| Power Consumption | 1292W rated input power |
| Motor Type | Series universal motor with bypass airflow design |
Part Numbers
| Manufacturer Part Number | 116764-13 |
| Alternate SKU Designations | AMT116764-13, AMT11676413, 11676413-XX-M |
| Cross-Reference Part Numbers | Replaces Lamb 116764 motor only - no other cross-reference numbers applicable |
Performance
| Motor Speed | 18,000 RPM rotational speed |
| Maximum Airflow | 100 CFM at open flow conditions |
| Maximum Air Watts | 382 air watts at peak efficiency point |
Frequently Asked Questions
Q: What are the voltage and frequency specifications for the AMT116764-13?
A: The AMT116764-13 operates at 120VAC with 110-120V nominal range, dual frequency 50-60 Hz. Input power is 1292W at 11.1A maximum current draw. Confirm that your facility power supply matches these specifications before ordering.
Q: What airflow and vacuum performance does the AMT116764-13 deliver?
A: The AMT116764-13 produces 100 CFM airflow and generates 119.6 inches of water lift sealed vacuum. Maximum air watts output is 382. These specifications define the motor performance ceiling for compatible floor scrubber equipment applications.
Q: What construction and materials are used in the AMT116764-13?
A: The AMT116764-13 features a 5.7-inch frame diameter, double ball bearing construction, and epoxy-coated housing. The motor operates at 18,000 RPM with ACUSTEK discharge technology. Field-replaceable carbon brushes support extended service life in industrial cleaning applications.
Q: What is the cross-reference information for the AMT116764-13?
A: The AMT116764-13 replaces the Lamb 116764 motor only. No other cross-reference part numbers are applicable. Alternate SKU designations include AMT11676413, 11676413-XX-M, and the core number 116764-13.
Q: What is the motor speed and power consumption of the AMT116764-13?
A: The AMT116764-13 operates at 18,000 RPM with 1292W input power consumption. At 11.1A current draw, the motor is rated for three-stage peripheral bypass operation in continuous duty floor scrubber environments.
