Product Description

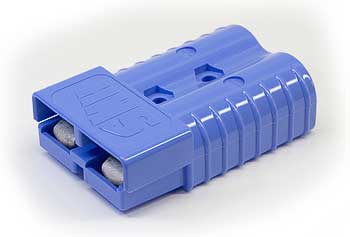

Blue, 350 Amp Housing & Contacts
Frequently Asked Questions
Q: What is the amperage and voltage rating for the AN 6321G1?
A: The AN 6321G1 blue connector is rated for 350 amps continuous current at 600V AC/DC. It is a heavy-duty power connector for high-current battery circuits and main charging connections in industrial electric lift trucks.
Q: What is the difference between the AN 6321G1 (blue) and the AN 6320G1 (gray)?
A: The primary difference is body color: AN 6321G1 is blue and AN 6320G1 is gray. Both are rated for 350 amps and 600V AC/DC. Color coding helps technicians organize and identify connector types in multi-connector charging systems.
Q: What cable gauge does the AN 6321G1 accept?
A: The AN 6321G1 is compatible with 2/0 AWG cable, required for safe 350 amp operation. Using undersized cable creates excessive heating and fire risk; oversized cable cannot crimp properly into the contact.
Q: Is the AN 6321G1 a genderless connector?
A: Yes, the AN 6321G1 uses genderless hermaphrodite contacts, allowing either half to mate with any other. This design simplifies fleet charging infrastructure and reduces user error when connecting high-amperage circuits.
Q: How does color coding help with the AN 6321G1 in a charging station?
A: The blue body on the AN 6321G1 allows technicians to quickly identify 350 amp high-power circuits visually. This color distinction prevents accidental misconnection of incompatible voltage or amperage circuits in mixed-equipment charging environments.
