Atlas Seal Kit for AA-5 and AA-5L Pallet Jacks
AT 3025B
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

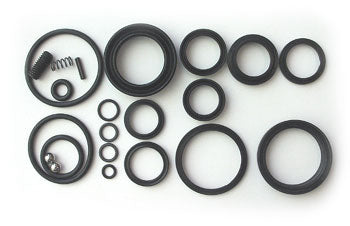

The AT 3025B is a complete hydraulic seal kit designed for Atlas AA-5 and AA-5L manual pallet jacks. This factory-spec compatible kit provides all components needed for hydraulic cylinder rebuilds and restoration, including cup packing, O-rings, dust seals, compression springs, pins, and hardened steel ball. Engineered with oil-resistant nitrile materials and precision-hardened steel components, the kit ensures reliable performance and extended equipment lifespan for manual pallet jack hydraulic systems.
Specifications
Material & Construction
| Construction Material | Oil-resistant synthetic rubber, nitrile to ASTM D2000, with steel components to SAE 1045, SAE 52100, and SAE 1070 standards |
Part Numbers & Compatibility
| Make | Atlas |
| Model | AA-5L, AA-5 |
| Cylinder Application | Designed for replacement in Atlas AA-5L hydraulic unit |
| Manufacturer Part Number | AT 3025B |
| Equivalent Part Number | AT 3025B |
| Cross-Reference Part Numbers | Equivalent to AA-5L, AA-5; No direct supersedes or replaces part numbers available |
| Kit Compatibility | Assembly conforms to Atlas AA-5L hydraulic components |
| Cross Reference Part Numbers | Equivalent to AA-5L, AA-5; No direct supersedes or replaces part numbers available |
Performance Specifications
| Operating Pressure (max) | Hydraulic seal rated to 3,000 PSI working pressure |
Additional Specifications
| Seal Kit Reference Number | AT 3025B as listed on manufacturer sites and industrial distributors |
| O-Ring Material | Nitrile (Buna-N), conforms to ASTM D2000 |
| Cup Packing Material | Nitrile with fabric reinforcement |
| Alternate Model | AA5L, AA 5L |
| O Ring Material | Nitrile (Buna-N), conforms to ASTM D2000 |
Frequently Asked Questions
Q: What models is the AT 3025B seal kit compatible with?
A: The AT 3025B is designed for Atlas AA-5 and AA-5L manual pallet jacks. It provides all necessary components for hydraulic cylinder rebuilds on these models.
Q: What materials are used in the AT 3025B seal kit?
A: The seal components are made from oil-resistant synthetic rubber and nitrile materials that meet industry standards. Steel parts are precision-hardened for durability and load handling.
Q: How do I know if the AT 3025B is the right replacement for my pallet jack?
A: Check your equipment's model number to confirm compatibility. The AT 3025B is specifically designed for Atlas AA-5 and AA-5L manual pallet jacks.
Q: What should I consider before replacing hydraulic seals on my pallet jack?
A: Ensure the seal kit matches your equipment's specifications. The AT 3025B is engineered for Atlas AA-5 and AA-5L models, providing all necessary components for a complete rebuild.
Q: What is the pressure rating of the AT 3025B seal kit?
A: The AT 3025B is rated for hydraulic systems operating at up to 3,000 PSI. Verify your equipment's pressure requirements before installation.
