Atlas z-1211 Bell Crank Axle for Atlas Zenith Type 9 Pallet Jacks
AT Z-1211
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

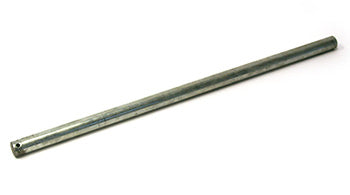

Atlas AT Z-1211 Bell Crank Axle is a precision-machined carbon steel shaft engineered for Atlas Zenith Type 9 manual pallet jacks. Designed to serve as the actuator pivot interface in the bell crank assembly, it installs as a press-fit bearing surface within the jack frame and is finished to exacting tolerance for reliable manual actuation.
Compatibility: Fits pallet jacks made by Atlas, model Zenith. SKU: AT Z-1211
Specifications
Material & Construction
| Hardness | Rockwell C35 minimum |
Part Numbers & Compatibility
| Make | Atlas |
| Model | Zenith Type 9 |
| Part Number | AT Z-1211 |
| Compatible Equipment | Atlas Zenith Type 9 Manual Pallet Jack |
Additional Specifications
| Material Specification | Machined carbon steel, minimum specification SAE 1045 |
| Surface Finish | Precision ground, oil finish |
Frequently Asked Questions
Q: What is the AT Z-1211 bell crank axle and what does it do?
A: The AT Z-1211 is a precision-machined carbon steel shaft that serves as the actuator pivot interface in the bell crank assembly of Atlas Zenith Type 9 manual pallet jacks. It transfers manual pumping motion to the hydraulic lift mechanism.
Q: What material and hardness specification does the AT Z-1211 meet?
A: The AT Z-1211 is manufactured from carbon steel meeting minimum sae 1045 specification with a precision ground finish, oil-finished surface, and rockwell c35 minimum hardness.
Q: Which Atlas pallet jack models use the AT Z-1211 axle?
A: The AT Z-1211 is designed for Atlas Zenith Type 9 manual pallet jacks only. Verify your equipment has the Zenith Type 9 designation on the nameplate before ordering.
Q: What symptoms indicate the AT Z-1211 axle may be failing?
A: Observable failure symptoms include excessive play or wobble in the pump handle during actuation, grinding noise from the bell crank area, or resistance that suggests the bearing surface is worn or binding.
Q: How do I know if I need to replace the AT Z-1211?
A: Inspect for signs of wear, such as looseness or binding in the bell crank assembly. If you experience difficulty operating the pump handle or notice unusual noises, replacement may be necessary.
Q: Is the AT Z-1211 suitable for use in harsh environments?
A: The AT Z-1211 is built to withstand typical operating conditions. Ensure it is used in accordance with the manufacturer's guidelines for optimal performance and longevity.
