Product Description

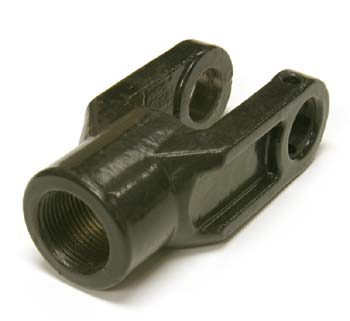

Atlas AT Z-1209 Clevis is an OEM replacement component for Zenith (Type 9) manual pallet jacks, utilized in the frame linkage system for reliable mechanical connection. Manufactured from formed steel with anti-corrosive paint treatment. Item reference 24 in OEM assembly diagrams.
Compatibility: Fits pallet jacks made by Atlas, model Zenith (Type 9). Alternate model: Zenith(Type9). SKU: AT Z-1209
Specifications
Material & Construction
| Construction | Formed steel fabrication |
Part Numbers
| OEM Part Number | AT Z-1209 |
| Manufacturer Part Number | Z-1209 |
| Compatible Models | Atlas Zenith (Type 9) manual pallet jack |
Frequently Asked Questions
Q: What is the AT Z-1209 Clevis component?
A: The AT Z-1209 clevis is an OEM replacement component for Atlas Zenith Type 9 pallet jacks used in the frame linkage system. It provides a mechanical connection point that secures the linkage to the lifting arms or frame, transmitting force from the hydraulic pump to the lifting mechanism.
Q: Which pallet jack models does the AT Z-1209 Clevis fit?
A: The AT Z-1209 clevis is designed exclusively for Atlas Zenith Type 9 manual pallet jacks, also referenced as Zenith(Type9). Do not use this component on other models as mechanical fitment and function are model-specific.
Q: What material is the AT Z-1209 Clevis made from and how is it treated?
A: The AT Z-1209 is fabricated from formed steel using a ductile iron or steel casting process. It features an anti-corrosive paint treatment to protect against rust and wear in warehouse, outdoor, and variable climate environments. This treatment extends service life and maintains reliable mechanical function.
Q: Where is the AT Z-1209 Clevis located in the pallet jack assembly?
A: The AT Z-1209 clevis is identified as Item Reference 24 in OEM assembly diagrams for Atlas Zenith Type 9 pallet jacks. It is located in the frame linkage system where it connects mechanical actuators to the lifting arms.
Q: What symptoms indicate the AT Z-1209 Clevis needs replacement?
A: Replace the clevis if you observe cracks or breaks in the component, if the linkage appears loose or misaligned, if rust or corrosion compromises mechanical function, if the connection point shows movement during operation, or if linkage response becomes sluggish or uneven.
Q: What are the cross-reference part numbers for the AT Z-1209 Clevis?
A: The OEM manufacturer part number is Z-1209, which corresponds directly to SKU AT Z-1209. Use this reference number when cross-referencing against Atlas Zenith Type 9 assembly diagrams or when ordering replacement parts.
