Product Description

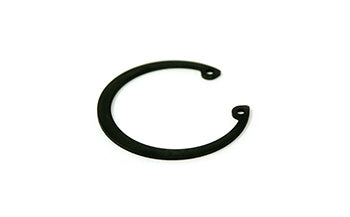

Atlas AT Z-1223 Snap Ring—genuine OEM retaining ring for Atlas Zenith Type 9 manual pallet jack frame assemblies. Designed to secure shafts at the load wheel bracket; constructed of spring steel for reliable groove retention.
Compatibility: Fits pallet jacks made by Atlas, model Zenith. SKU: AT Z-1223
Specifications
Part Numbers
| Manufacturer Part Number | AT Z-1223 |
| OEM Part Number | AT Z-1223 |
| Application Compatibility | Atlas Zenith Type 9 manual pallet jack frame |
Frequently Asked Questions
Q: What is the AT Z-1223 and what does it secure?
A: The AT Z-1223 is a genuine OEM snap ring (retaining ring) for Atlas Zenith Type 9 manual pallet jacks. It secures shafts at the load wheel bracket and is constructed of spring steel to maintain reliable groove retention under operating stress.
Q: Will the AT Z-1223 fit pallet jacks other than Atlas Zenith Type 9?
A: No. The AT Z-1223 is designed specifically for Atlas Zenith Type 9 frame assemblies. Snap ring compatibility depends on shaft diameter, groove specifications, and mounting location. Do not substitute this part on other equipment.
Q: What material is the AT Z-1223 made from and why?
A: The AT Z-1223 is manufactured from spring steel to provide the elastic tension necessary to hold load wheel bracket shafts securely in their grooves during operation. Spring steel resists permanent deformation under the cyclical stresses of load handling.
Q: What are signs that the AT Z-1223 needs replacement?
A: Replace the AT Z-1223 if it shows permanent set (loss of tension), corrosion, cracks, or if the load wheel bracket shaft moves excessively or comes loose during operation. A failed snap ring can result in wheel separation and equipment instability.
Q: How often should the AT Z-1223 be inspected?
A: Inspect the AT Z-1223 during routine maintenance intervals or whenever you service the load wheel assembly. High-cycle material handling operations may require more frequent checks. Replace immediately if groove tension is visibly compromised.
