Product Description

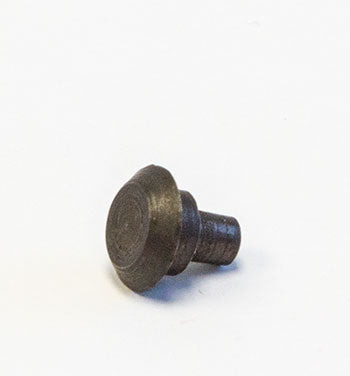

Atlas AT Z-1114 Spring Seat for Zenith (Type 9) manual pallet jack hydraulic units, OEM fitment, high-strength carbon steel construction, interfaces with return spring assembly, validated for Atlas pallet jack compatibility, no cross-reference part numbers available.
Compatibility: Fits pallet jacks made by Atlas, model Zenith. SKU: AT Z-1114
Specifications
Dimensional Specifications
| Mounting Arrangement | Fits OEM spring seat mounting location in Type 9 hydraulic unit; specific bolt pattern not published |
Part Numbers
| Manufacturer Part Number | AT Z-1114 |
| OEM Part Number | AT Z-1114 |
| Compatible Model | Atlas Zenith (Type 9) manual pallet jack hydraulic unit |
Frequently Asked Questions
Q: What does the AT Z-1114 Spring Seat do?
A: The AT Z-1114 is an OEM spring seat for Atlas Zenith Type 9 manual pallet jack hydraulic units. It interfaces with the return spring assembly, providing a mounting interface that maintains correct spring load and return force calibration within the hydraulic system.
Q: What material is the AT Z-1114 Spring Seat made from?
A: The AT Z-1114 is constructed from high-strength carbon steel, engineered to withstand repeated spring cycling stress and maintain dimensional stability. Carbon steel material resists fatigue cracking and provides durability in the high-pressure hydraulic environment.
Q: Which Atlas pallet jacks require the AT Z-1114 Spring Seat?
A: The AT Z-1114 is specified for Atlas Zenith Type 9 manual pallet jack hydraulic units. Verify your hydraulic unit model matches Type 9 designation. This part is not compatible with other Atlas hydraulic unit types or generations.
Q: What symptoms indicate the AT Z-1114 Spring Seat is damaged?
A: Signs of spring seat failure include reduced return force (load does not return quickly), visible deformation or cracking on the seat surface, loose spring contact, or inconsistent hydraulic control response. Inspection may reveal permanent deformation preventing correct spring seating.
Q: Are there cross-reference part numbers for the AT Z-1114?
A: No cross-reference part numbers are available for the AT Z-1114. This is the OEM Atlas part number for Type 9 hydraulic unit spring seat assembly. Use this exact designation when ordering to ensure proper fitment and spring load calibration.
Q: What is the typical service life of the AT Z-1114 Spring Seat?
A: Spring seat lifespan depends on operating hours and load cycles. High-strength carbon steel construction typically provides extended durability. Replace when inspection reveals surface cracking, permanent deformation, or when spring return force becomes inconsistent during operation.
