Product Description

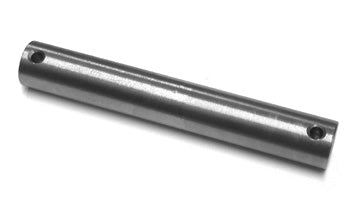

Replacement axle for manual pallet jacks with precision-engineered construction for reliable, long-lasting performance. Manufactured from SAE 1045 cold drawn steel with oil black oxide finish, this direct replacement part is rated for 2500 lbs working load and features threaded ends compatible with 6203 ball bearings. Part number 800075519 is a drop-in replacement for standard manual pallet jack applications across multiple manufacturers.
Specifications
Material & Construction
| Material | SAE 1045 cold drawn steel |
| Finish | Oil black oxide |
| Hardness | Brinell 180 (minimum) |
Specifications
| Shaft Diameter | 0.625 inch |
| Working Load Rating | 2500 lbs |
| Threaded Ends | Yes |
| Compatible Bearings | 6203 ball bearings |
Part Information
| Part Number | 800075519 |
| Cross Reference Part Numbers | No cross-reference part numbers available |
Frequently Asked Questions
Q: What are the specifications for the 800075519 replacement axle?
A: The 800075519 is a replacement axle for manual pallet jacks with these specifications: shaft diameter 0.625 inch, fabricated from SAE 1045 cold drawn steel, oil black oxide finish, Brinell hardness 180 minimum, working load rating 2500 lbs, threaded ends, and compatibility with 6203 ball bearings. Part number is 800075519.
Q: Which manual pallet jack models are compatible with the 800075519 axle?
A: The 800075519 is designed as a direct factory-spec replacement for manual pallet jacks rated at 2500 lbs working load capacity. It is compatible with equipment from common manufacturers including Crown, Toyota, Raymond, Yale, and Hyster. Verify your pallet jack model number and load rating match the 2500 lbs specification before ordering.
Q: Why is SAE 1045 cold drawn steel used in the 800075519 axle?
A: SAE 1045 cold drawn steel provides the strength and precision tolerances required for axle duty in manual pallet jacks. Cold drawn processing produces tight dimensional accuracy necessary for proper fit with 6203 ball bearings. The oil black oxide finish provides corrosion resistance for warehouse and outdoor environments. Brinell hardness of 180 minimum ensures durability under repeated load cycling.
Q: What is the load rating for the 800075519 axle and are there cross-reference part numbers?
A: The 800075519 axle is rated for 2500 lbs working load. There are no cross-reference part numbers available for this part. This is a direct replacement part number. Do not substitute with other axles rated for different load capacities.
