Product Description

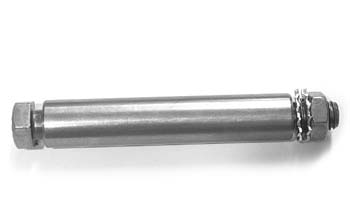

Liftsplus.com SKU 38643 AXLE ASSEMBLY for manual pallet jacks. SAE 1045 medium carbon steel, 130 mm length, 20 mm diameter, ±0.005 inch tolerance, plain finish, fits standard pallet jack axle mounts, accepts plain/needle bearings. No cross-reference part numbers available.
Specifications
Material & Construction
| Hardness | Rockwell C35 minimum |
| Finish | Plain finish, light machine oil coating |
Part Numbers
| OEM Part Number | 38643 |
Frequently Asked Questions
Q: What is the material and hardness of SKU 38643?
A: The 38643 axle assembly is SAE 1045 medium carbon steel with a minimum Rockwell C35 hardness rating, providing load-bearing strength for pallet jack applications.
Q: What are the dimensions of the 38643 axle assembly?
A: The 38643 measures 130 mm in length and 20 mm in diameter with a tolerance of plus or minus 0.005 inch, meeting standard pallet jack axle mount specifications.
Q: Which bearing types are compatible with SKU 38643?
A: The 38643 accepts both plain and needle roller bearings. Confirm bearing bore diameter matches the 20 mm shaft diameter.
Q: What finish does the 38643 have?
A: The 38643 comes with a plain finish and light machine oil coating for corrosion protection during storage and normal pallet jack operation.
Q: Does the 38643 fit standard pallet jack axle mounts?
A: Yes, the 38643 is designed to fit standard pallet jack axle mounts. The 20 mm diameter and 130 mm length are common specifications across manual pallet jack models.
Q: Are there cross-reference part numbers for the 38643?
A: No cross-reference part numbers are currently available for the 38643. This is our direct supply part for standard manual pallet jack axle assemblies.
