Product Description

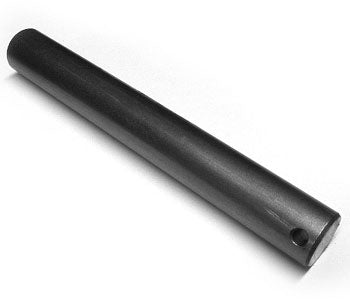

BT 30028 axle is a precision-machined carbon steel component designed as a load wheel axle for BT manual pallet jack models L2000, L2300, and LHM300. Features a 20 mm nominal shaft diameter, 92 mm overall length, SAE 1045 steel, Brinell 180 hardness, and supports wheels with 85 mm outer diameter and 75 mm width. Suitable for static loads up to 3000 kg. No cross-reference or superseded part numbers available.
Compatibility: Fits pallet jacks made by BT Prime Mover, model L2000. SKU: BT 30028
Specifications
Dimensions
| Shaft Diameter | 20 mm |
| Overall Length | 92 mm |
| Wheel Outer Diameter | 85 mm |
| Wheel Width | 75 mm |
Material Properties
| Steel Grade | SAE 1045 |
| Hardness | Brinell 180 HB |
Part Number
| Manufacturer Part Number | BT 30028 |
| Compatible Models | BT L2000, BT L2300, BT LHM300 |
Performance
| Static Load Capacity | 3000 kg |
| Duty Cycle | Continuous operation, 120 cycles/hour |
Frequently Asked Questions
Q: What are the specifications of the BT 30028 load wheel axle?
A: The BT 30028 is a precision-machined carbon steel axle with a 20 mm nominal shaft diameter and 92 mm overall length. It is manufactured from SAE 1045 steel with Brinell 180 HB hardness. The axle is designed to support wheels with 85 mm outer diameter and 75 mm width, rated for static loads up to 3000 kg.
Q: Which BT pallet jack models are compatible with the BT 30028 axle?
A: The BT 30028 load wheel axle is compatible with BT L2000, BT L2300, and BT LHM300 manual pallet jacks. Verify that your equipment model matches before ordering to ensure correct fitment.
Q: What is the maximum load capacity of the BT 30028 axle?
A: The BT 30028 axle is rated for static loads up to 3000 kg. It is designed for continuous operation at approximately 120 cycles per hour. Do not exceed the rated load capacity, as this can cause permanent deformation or failure.
Q: Why does the BT 30028 use SAE 1045 steel with Brinell 180 hardness?
A: SAE 1045 carbon steel with Brinell 180 HB hardness provides a balance of strength and wear resistance for load wheel applications. This material specification ensures the axle can withstand cyclic loading and friction from wheel rotation without deforming or cracking under normal operating conditions.
Q: Are there cross-reference part numbers for the BT 30028?
A: The BT 30028 is an OEM part from BT with manufacturer part number BT 30028. No cross-reference or superseded part numbers are available for this axle.
