Product Description

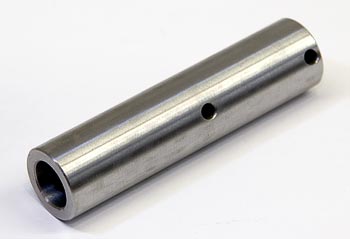

Quick-adjust caster axle for Crown PE series electric pallet trucks. This machined hard steel component delivers reliable performance in demanding warehouse environments. Engineered for caster wheel mounting on PE 3000, PE 4000, and PE 4500 models, the 115368 features durable SAE 1045 grade construction with black oxide finish and Rockwell C35 minimum hardness for extended service life and corrosion resistance.
Specifications
Dimensional
| Axle Diameter | 0.75 inch |
| Axle Length | 4.50 inch |
| Thread Specification | 1/2-13 UNC |
| Keyway Specification | 0.187 inch wide x 1.50 inch long |
Material
| Material Specification | Machined hard steel |
| Material Grade | SAE 1045 |
| Surface Finish | Black oxide |
| Surface Hardness | Rockwell C35 minimum |
Performance
| Load Capacity | 1500 lbs at 24 inch caster center |
Part Number
| Manufacturer Part Number | 115368 |
| Compatible Equipment | Crown PE 3000, PE 4000, PE 4500 Series |
Frequently Asked Questions
Q: What is the CR 115368 axle and what equipment does it fit?
A: The CR 115368 is a quick-adjust caster axle designed for Crown PE 4000 and PE 4500 Series electric pallet trucks, and compatible with PE 3000 models. It is a machined hard steel component engineered for caster wheel mounting and load distribution.
Q: What are the key dimensional specifications of the CR 115368?
A: The CR 115368 has a 0.75 inch axle diameter, 4.50 inch overall length, and 1/2-13 UNC thread specification. The axle is rated for 1500 lbs load capacity at 24 inch caster center distance.
Q: What material grade and surface hardness does this axle have?
A: The CR 115368 is manufactured from SAE 1045 machined hard steel with a black oxide finish. Surface hardness is Rockwell C35 minimum, providing durability and corrosion resistance in demanding warehouse conditions.
Q: How does the quick-adjust feature of the CR 115368 work?
A: The quick-adjust design allows repositioning of the caster wheel mounting position without removing the axle completely. The 1/2-13 UNC threading accommodates multiple mounting hole patterns for caster wheel alignment.
Q: What failure symptoms indicate the CR 115368 axle needs replacement?
A: Replace the axle if you observe caster wobbling, lateral movement when steering, scoring or pitting on the shaft surface, or bent geometry. Loss of the oxide finish exposing rust also indicates wear.
Q: Are there equivalent aftermarket axle options for the CR 115368?
A: Various aftermarket caster axles are available for Crown equipment. Verify that thread size (1/2-13 UNC), diameter (0.75 inch), and length (4.50 inch) match exactly before substitution.
