High-Density Red Polyurethane Steer Wheel Assembly WE 2726
B8-MJP-HD
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description

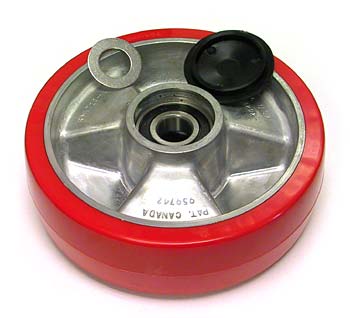

Precision steer wheel assembly (SKU: B8-MJP-HD) constructed with a high-density red polyurethane tread, cast iron hub core, and sealed ball bearing for heavy industrial pallet trucks. Rated for 1100 lbs at center mounting, 8-inch nominal diameter, 2-inch width, and 25 mm hub bore. Compatible with 0.625-inch axle; press-fit mounting with 0.188-inch keyway. OEM part number WE 272663.
Specifications
Wheel Specifications
| Tread Material | High-density red polyurethane |
| Tread Hardness | Shore A 95 |
Material & Construction
| Hub Core Material | Cast iron |
| Bearing Type | Sealed ball bearing |
Mounting & Compatibility
| Mounting Type | Press-fit |
Part Numbers
| Part Number | B8-MJP-HD |
| Reference Part Number | WE 272663 |
Frequently Asked Questions
Q: What is the B8-MJP-HD steer wheel assembly?
A: The B8-MJP-HD is a precision steer wheel assembly for heavy-duty pallet trucks and material handling equipment. It features a high-density red polyurethane tread, cast iron hub core, and sealed ball bearing to provide smooth, durable steering under heavy loads.
Q: What are the dimensions and load capacity of the B8-MJP-HD?
A: The B8-MJP-HD has an nominal diameter and width with a hub bore. It is rated for lbs at center mounting. Verify your equipment's center-of-load distance to confirm load rating applicability for your application.
Q: What materials are used in the B8-MJP-HD?
A: The wheel tread is high-density red polyurethane with Shore A 95 hardness for durability and traction. The hub core is cast iron, and the assembly includes a sealed ball bearing for long service life and reduced maintenance requirements in warehouse environments.
Q: What is the reference part number for the B8-MJP-HD?
A: The reference part number is WE 272663. Use this for cross-referencing in equipment manuals, parts catalogs, or technical documentation.
